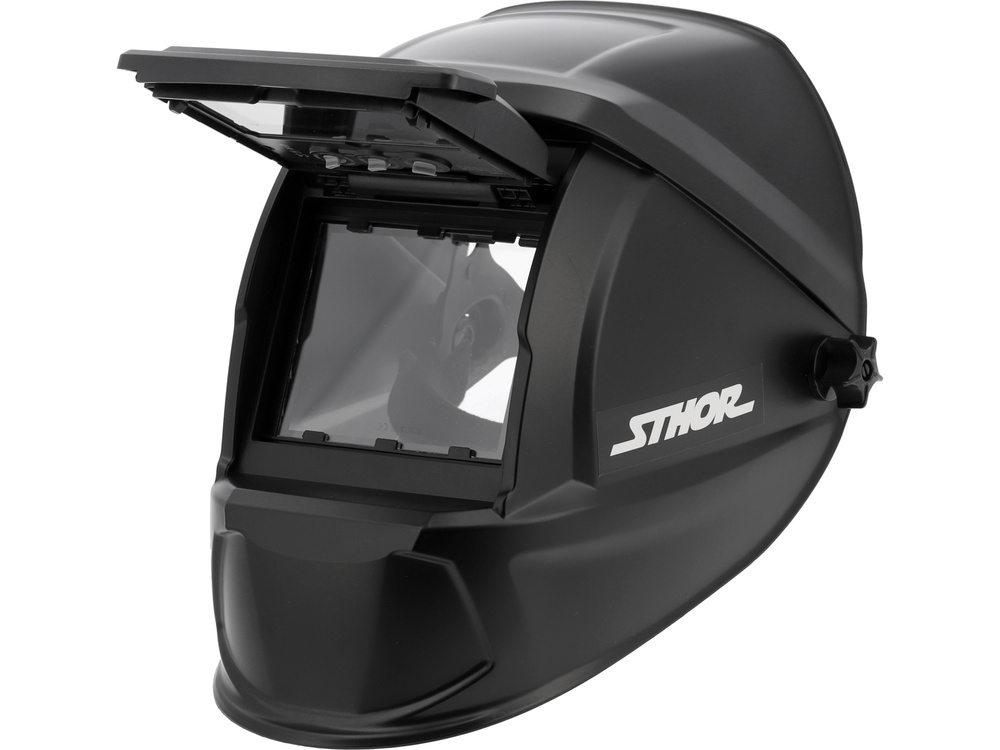

Automatiškai tamsėjanti suvirinimo kaukė / skydelis (74487)

(
10/
10)
01
23,10 €
Prekės kodas: 74487
Aprašymas:
Automatiškai tamsėjanti suvirinimo kaukė / skydelis (74487)
Gamintojas:
STHOR
74487
TRUE COLOR WELDING HELMET TILT FILTER 92X42 MM
Brand
Sthor
Symbol
74487
Standard
EN 175:1997, EN 379:2003 + A1:2009
Optical properties
1 / 1 / 1 / 2
Dark state
9-13 DIN
Light state
4 DIN
Filter type
auto-darkening TRUE COLOR
Filter size
110x90 mm
Field of view
92x42 mm
Helmet material
PP
Lens material
PC
3-point suspension
yes
Number of arc sensors
2
Response time
1/25000 s
Functions
grinding, welding
Darkness adjustment
yes, internal, smooth
Brightening time
0.1-1 s
Delay adjustment
yes, internal, smooth
Automatic sensitivity adjustment
no
Automatic switch on/off
yes
UV/IR radiation resistance
yes, DIN 16
Power supply
solar cell, battery
Battery type
3V; CR2032
Operating temperature range
-5 ~ +55 ˚C
Storage temperature
-20 ~ +70 ˚C
Application
welding
Welding method
MMA, MIG, MAG, TIG

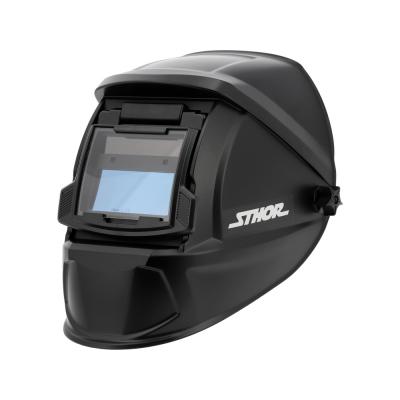

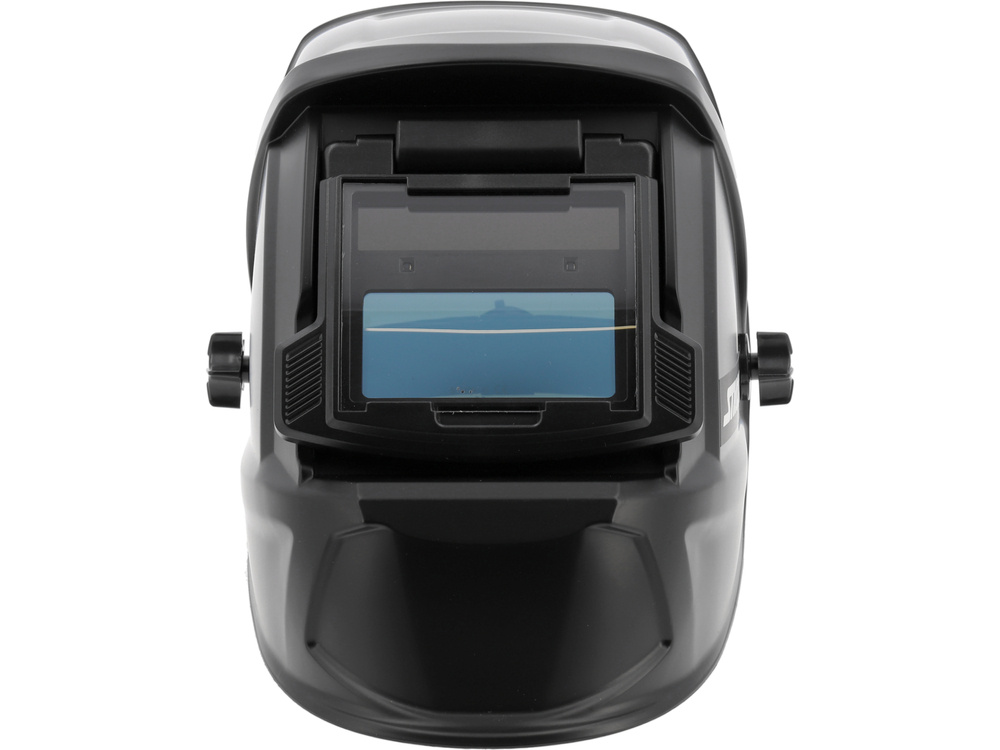

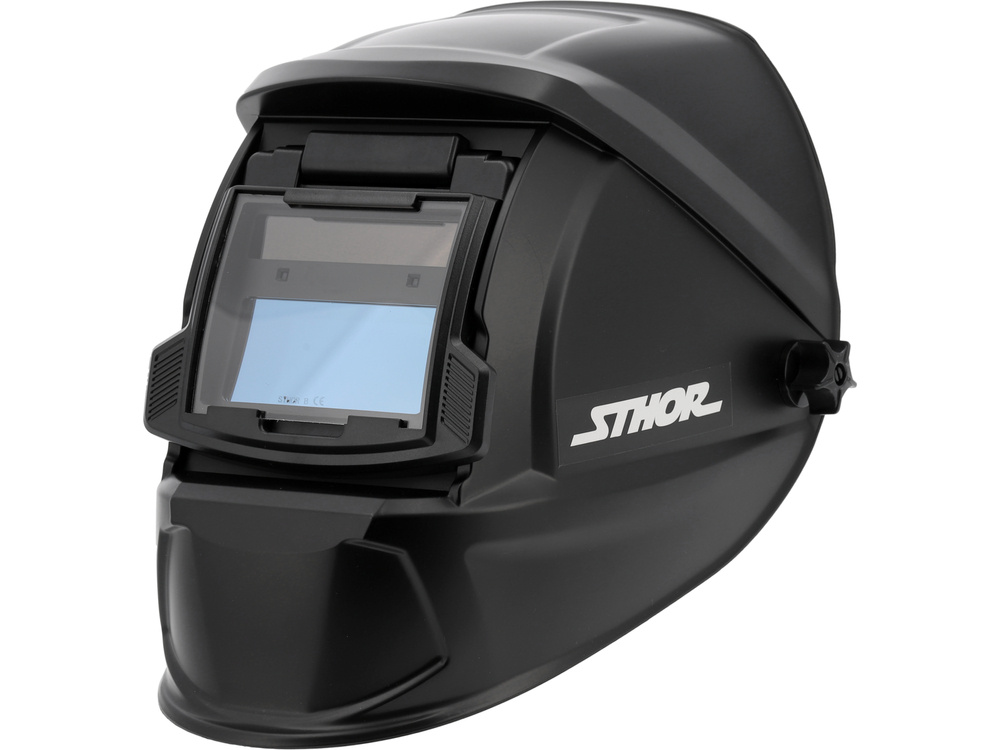

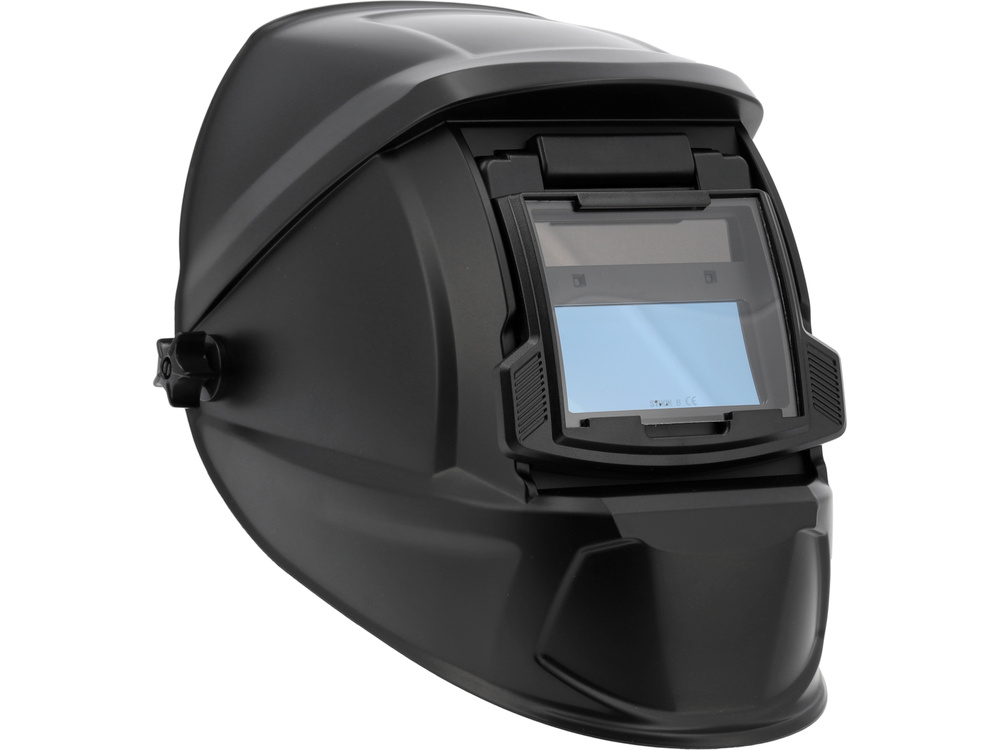

Welding helmet equipped with a self-darkening filter in TRUE COLOR technology in a tilting frame. It protects against electric arc light, UV/IR rays up to DIN 16 and spatter. Unlike filters with a traditional self-darkening filter, it does not change the perception of colors. Additionally, the filter has an adjustable degree of darkness.
Characteristics:
visor made of fireproof polypropylene, filter protective glass made of polycarbonate

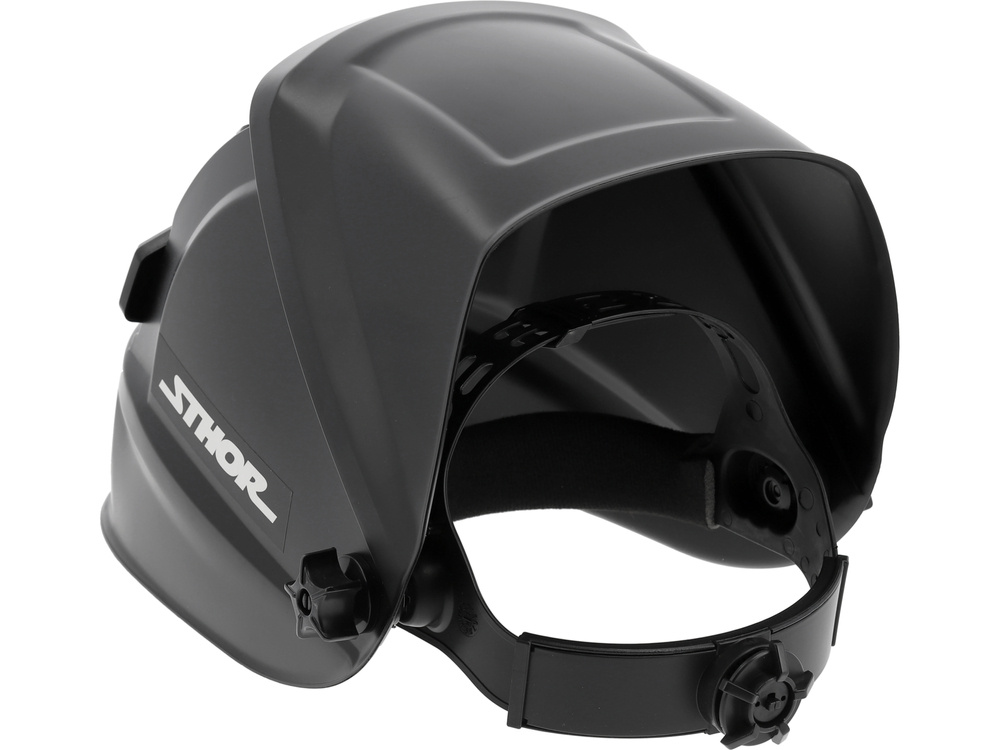

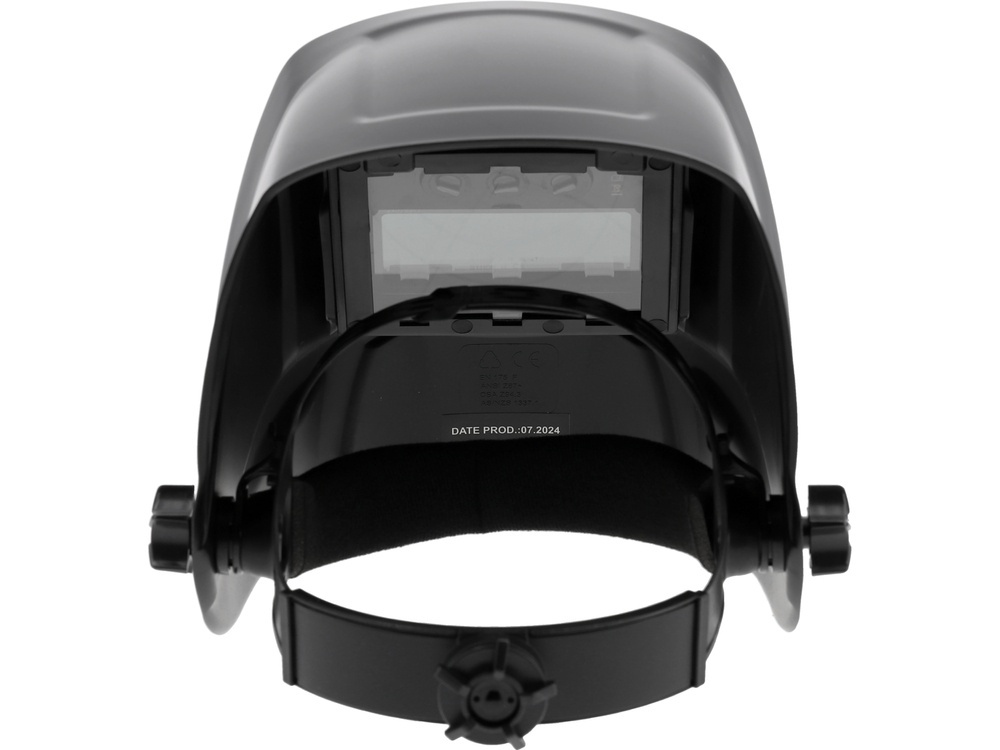

equipped with a 3-point suspension with adjustment
sweatband made of soft material improves work comfort

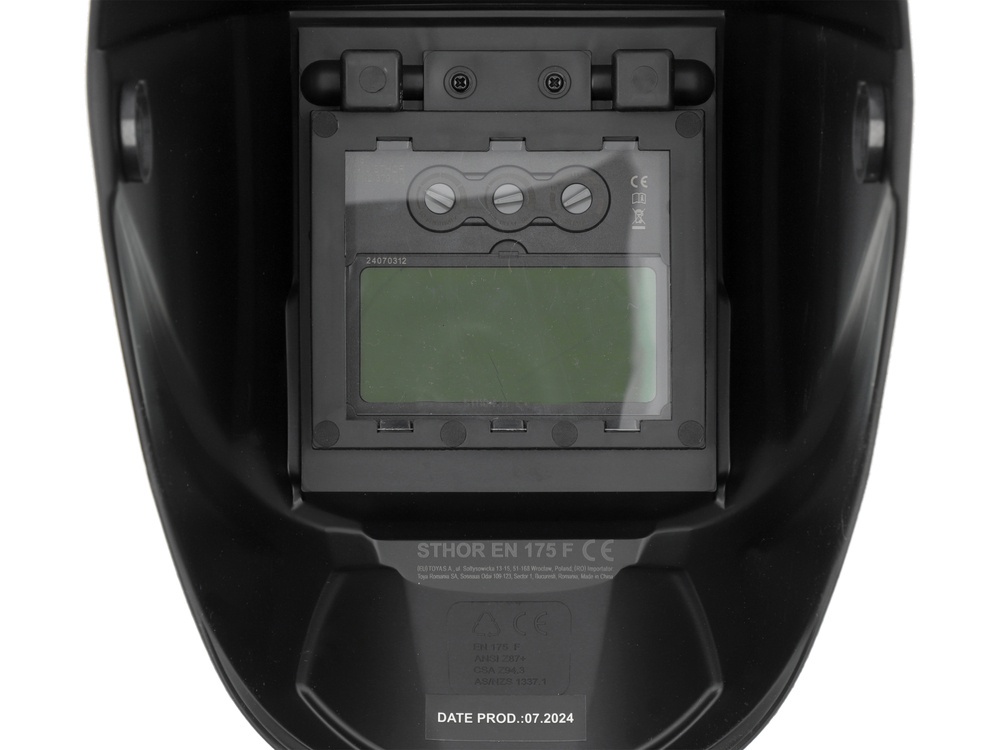

filter equipped with 2 sensors works automatically when illuminated by an electric arc
tilting frame allows the visor to be used as personal protective equipment protecting against grinding chips
Parameters:
dark state: DIN 9-13; light state: DIN 4
optical class: 1/1/1/2
field of view: 92 x 42 mm
reaction time 1/25000 s; lightening time 0.1-1.0 s
powered by a solar cell and CR2032 battery
