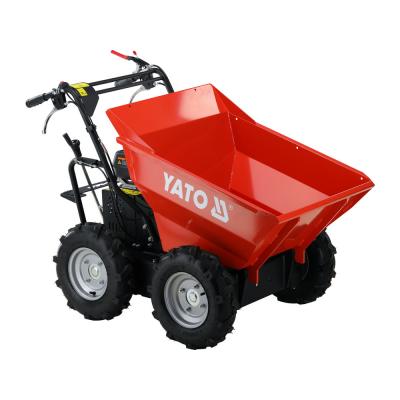

Benzininis savivartis | mini | 300 kg | 196 cm3 (YT-86115)

(10/10)

1654,21 €

Prekės kodas: YT-86115

Kiekis:

Aprašymas:

Benzininis savivartis | mini | 300 kg | 196 cm3 (YT-86115)

Gamintojas:
YATO

YT-86115
COMBUSTION DUMP TRUCK LOAD CAPACITY 300 KG, CAPACITY 196 CM3
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Power
4.1 kW
5.58 HP
Engine capacity
196 cm³
Revolutions
3600 min⁻¹
Max. load capacity
300 kg
Fuel type
unleaded petrol E10
Fuel tank capacity
3.6 l
Oil type
SAE 15W-40 (engine), GL-5 SAE 80W-90 (gearbox)
Oil tank capacity
0.6 (engine), 0.65 (gearbox) l
Max. speed
3.6 km/h
Gearbox
3 forward gears, 1 gear reverse
Starting type
manual
Drive type
4x4
Engine type
Loncin G200F
Spark plug type
F7RTC
Cooling
air
Housing material
metal
Dimensions
1368x746x950 mm
Wheels
yes
Number of wheels
4
Wheel type
pneumatic
Wheel diameter
16" (400 mm)
Number of cylinders in the engine
1
Number of strokes in the engine
4
Sound pressure
82.2 ± 3.0 dB(A)
Sound power
97.45 ± 0.67 dB(A)
Vibrations
2.48 ± 1.5 / 3.25 ± 1.5 m/s²
Weight
168 kg
Application
construction works (transport of materials bulk, bricks, concrete blocks), gardening and agriculture (transport of soil, feed, plants, fertilizers, tools),
Application cont.
municipal works (transport of waste, soil, rubble)
Symbol
YT-86115

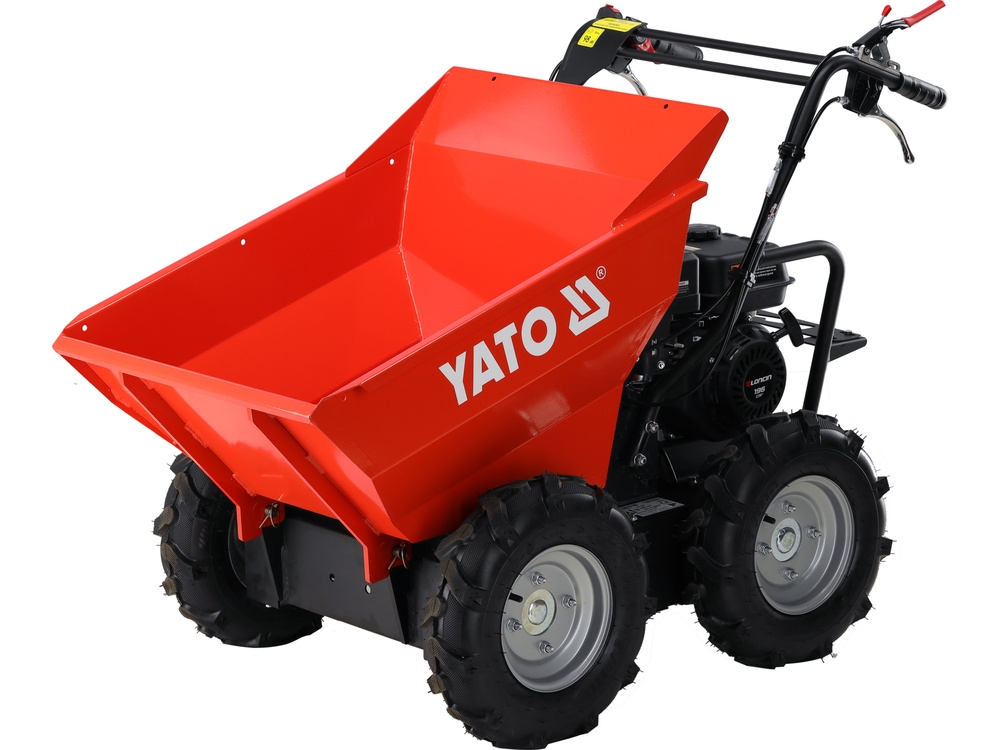

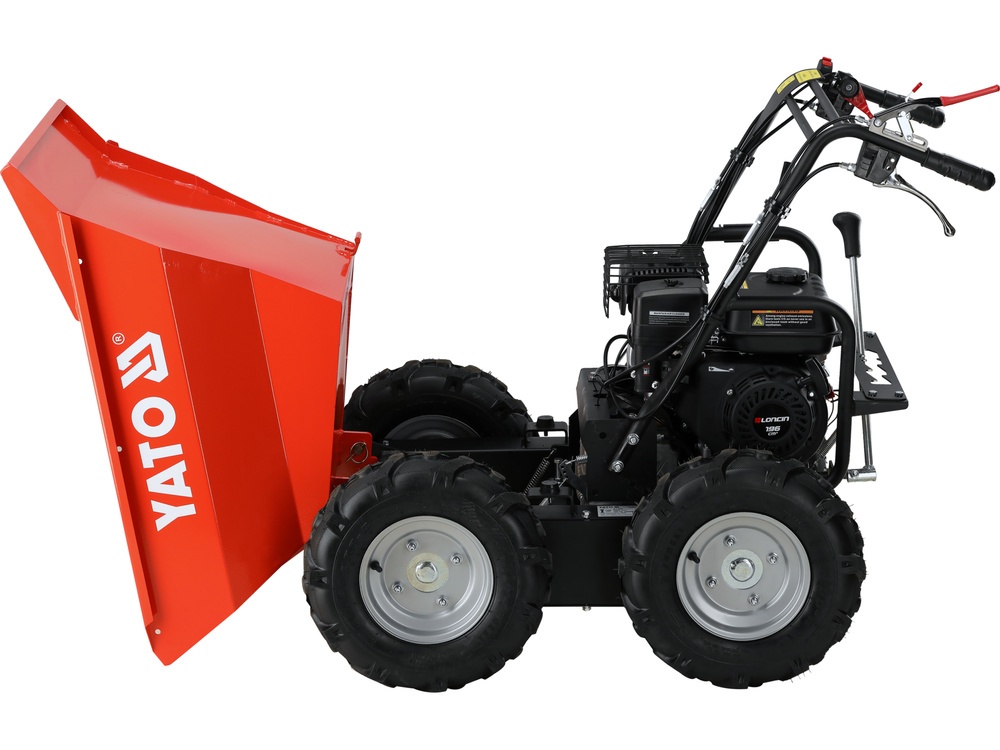

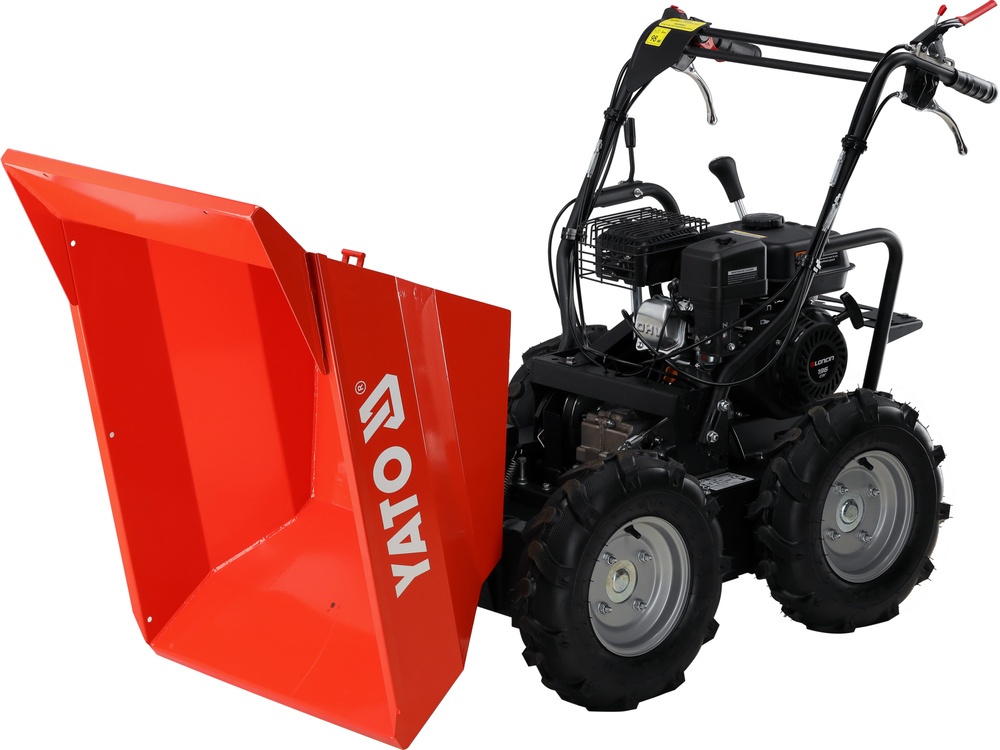

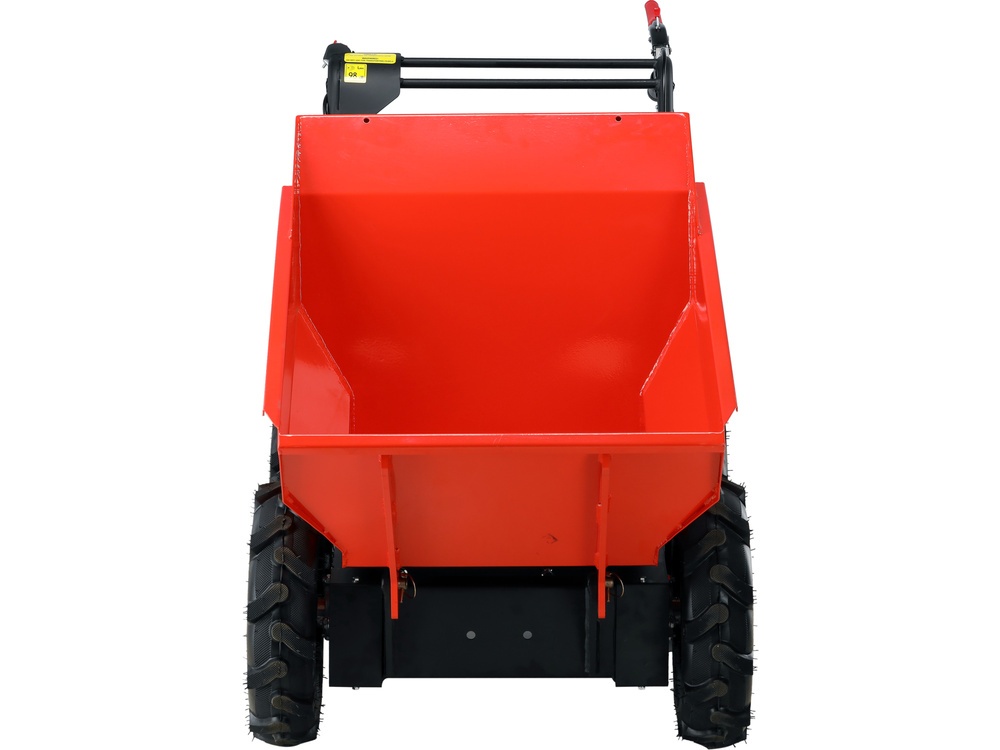

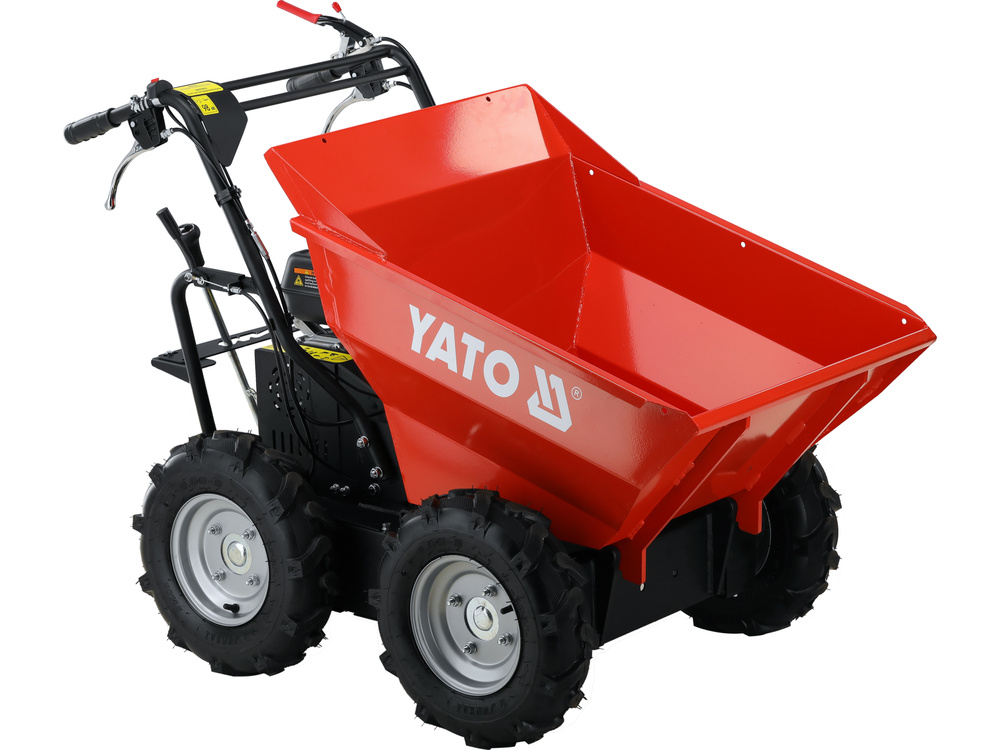

The diesel dump truck is a versatile and efficient transport device designed for use in construction, agriculture, gardening and other industries requiring the transport of bulk and heavy materials. Compact dimensions and a powerful Loncin engine make the machine perfect even in demanding terrain conditions.

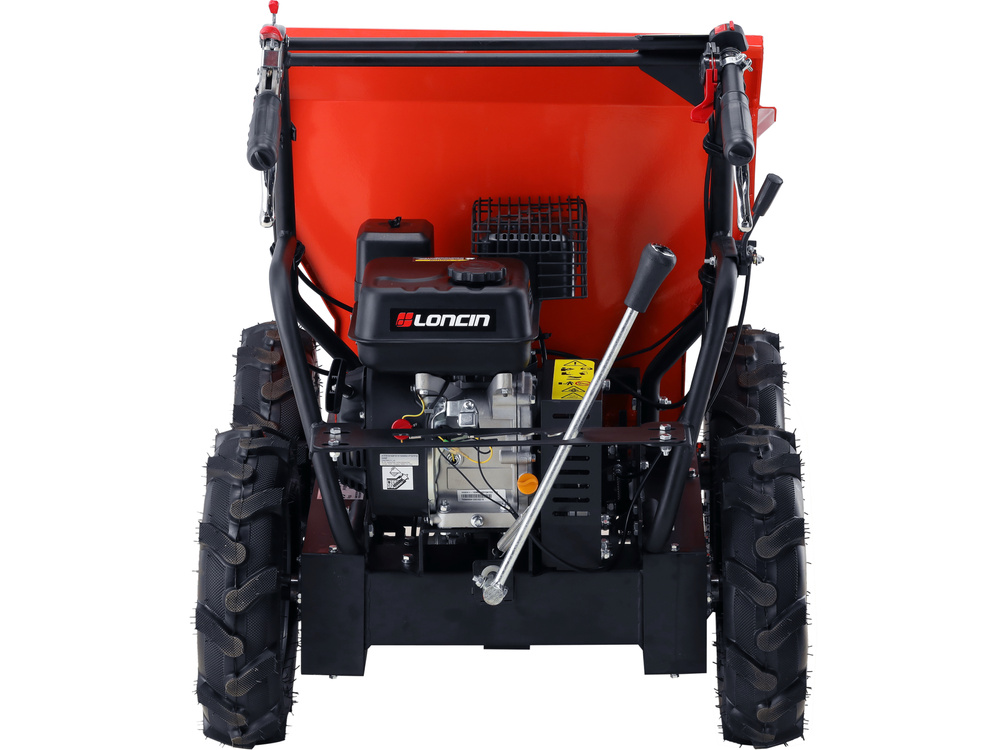

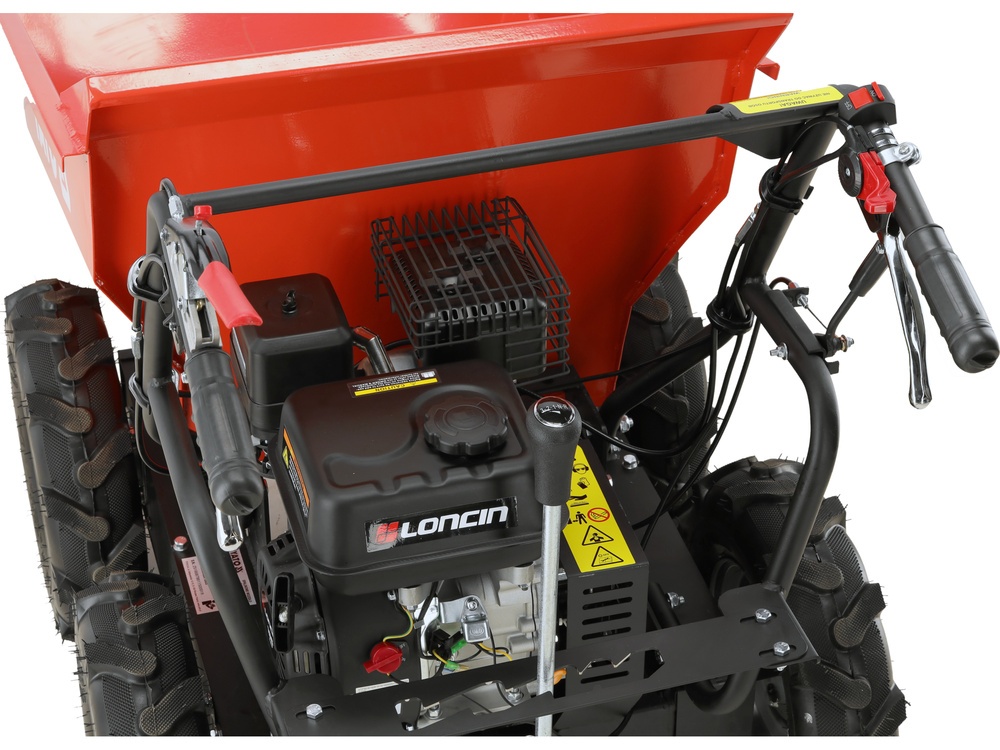

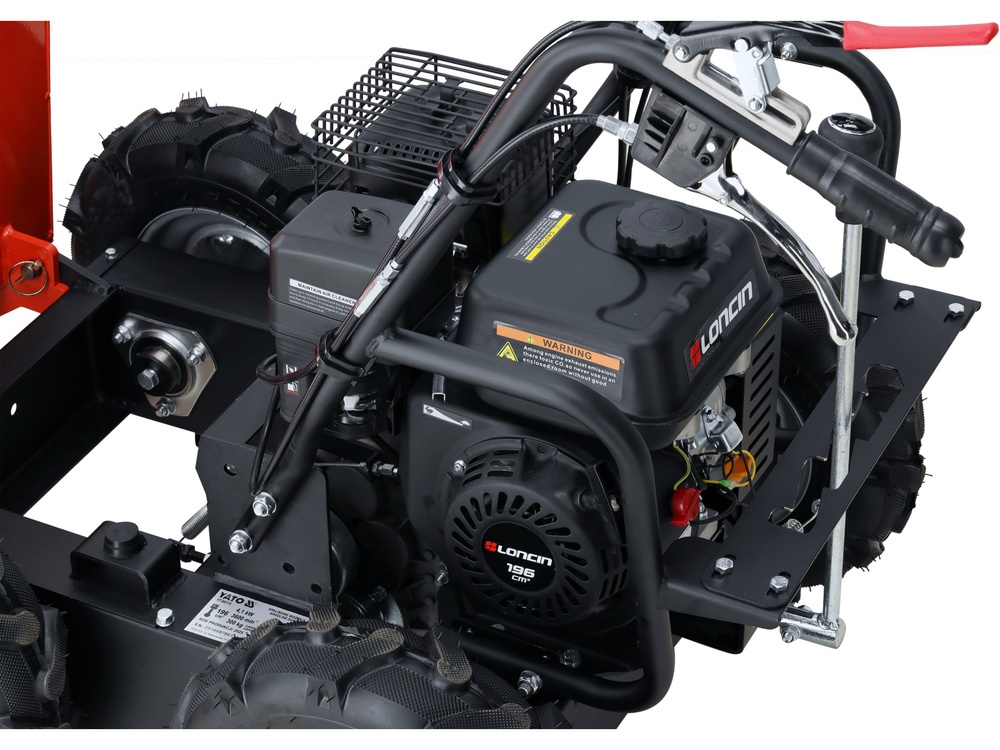

Loncin G200F engine
Type: internal combustion, four-stroke
Power: 4.1 kW
Capacity: 196 cm³
Max. torque: 3600 rpm
Starting: manual
Spark plug type: F7RTC
Fuel type: E10 unleaded petrol
Oil type: SAE 15W-40
Transmission oil type: SAE 80W-90
Fuel tank capacity: 3.6 l
Oil pan capacity: 0.6 l
Transmission oil tank capacity: 0.65 l

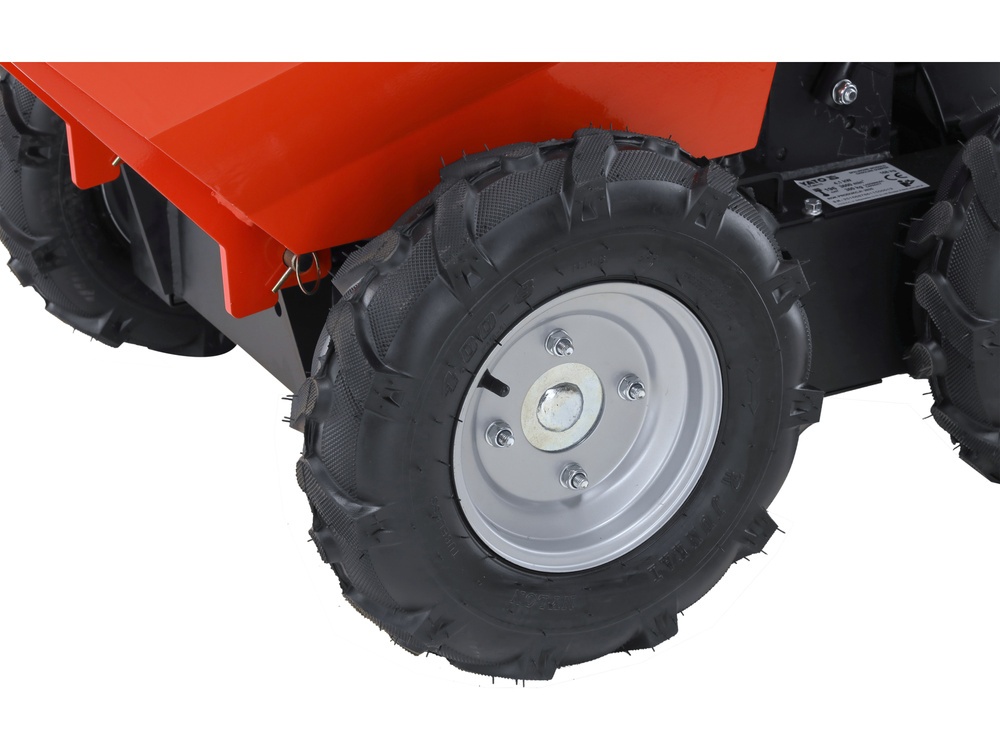

4 pneumatic wheels with a diameter of 16" with drive
Gearbox: 3 forward gears and 1 reverse gear allow you to adjust the speed to the work performed
Maximum speed: 3.6 km/h
Air cooling
Maximum load capacity: 300 kg
Weight: 168 kg
The internal combustion dumper is located wide application in:

construction – transport of building materials (sand, gravel, bricks, concrete)
agriculture – transport of feed, fertilizers, wood
horticulture – loading of soil, plants, tools
municipal works – transport of waste, soil, rubble

Warnings regarding use:

WARNING! Do not use for transporting people.
