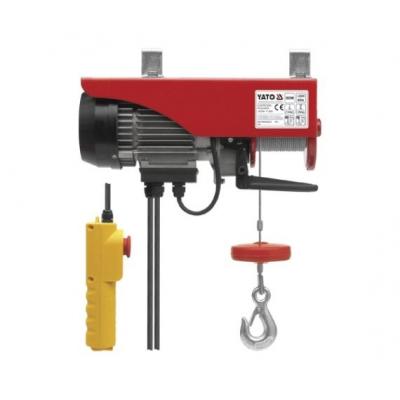

Elektrinė kėlimo gervė | 500W | 250 kg (YT-5901)

(10/10)

118,05 €

Prekės kodas: YT-5901

Kiekis:

Aprašymas:

Gamintojas:
YATO

Mark
Yato
Symbol
YT-5901
Power
500W
Max. load weight
125 (without additional hook), 250 (with additional hook) kg
Max lifting height
11 (without additional hook), 5.5 (with additional hook) m
Lifting speed
8 (without additional hook), 4 (with additional hook) m/min
Tension
230 V a.c.
Frequency
50 Hz
Rope length
12 m
Rope diameter
3mm
Rope strength
≥ 1870 N/mm²
Operating mode
S3 20% 10 min
Group of mechanisms
M1
Rated current
2.2A
Electrical insulation class
AND
Degree of insulation
B
Level of security
IP54
Sound pressure
52.2 ± 1.2 dB(A)
Acoustic power
73.6 ± 2.31 dB(A)
Mass
10.5kg

Application: construction industry, contractors. The winch is used to pull cargo in a vertical axis to great heights. Construction: load-bearing element: braided steel cable, drive is an electric motor, low-speed gear, electro-mechanical brake that locks the gear when the engine power is disconnected, control console on a long electric cable, mechanical limit switch.
YATO Premium For pulling small loads during construction works.
