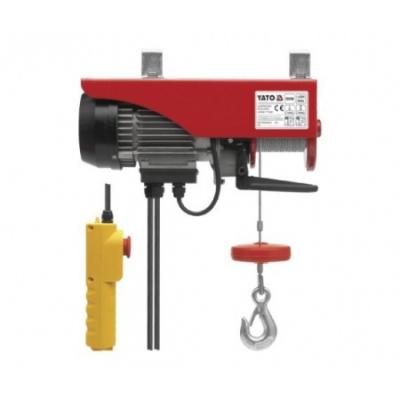

Elektrinė kėlimo gervė | 550W | 300 kg (YT-5902)
0
![10 10](images/10.png)
(
10/
10)
04
127,92 €
Prekės kodas: YT-5902
Aprašymas:
Gamintojas:
YATO![YATO YATO](catalog/yato.jpg)
Mark
Yato
Symbol
YT-5902
Power
550 W
Max. load weight
150 (without additional hook), 300 (with additional hook) kg
Max lifting height
11 (without additional hook), 5.5 (with additional hook) m
Lifting speed
8 (without additional hook), 4 (with additional hook) m/min
Tension
230 V a.c.
Frequency
50 Hz
Rope length
12 m
Rope diameter
3mm
Rope strength
≥ 1870 N/mm²
Operating mode
S3 20% 10 min
Group of mechanisms
M1
Rated current
2.4A
Electrical insulation class
AND
Degree of insulation
B
Level of security
IP54
Sound pressure
52.2 ± 0.9 dB(A)
Acoustic power
75.4 ± 4.8 dB(A)
Mass
11 kg
Application: construction industry, contractors. The winch is used to pull cargo in a vertical axis to great heights. Construction: load-bearing element: braided steel cable, driven by an electric motor, low-speed gear, electro-mechanical brake that locks the gear when the engine power is disconnected, control console on a long electric cable, mechanical limit switch. For pulling small loads during construction work.
Papildoma dokumentacija:
