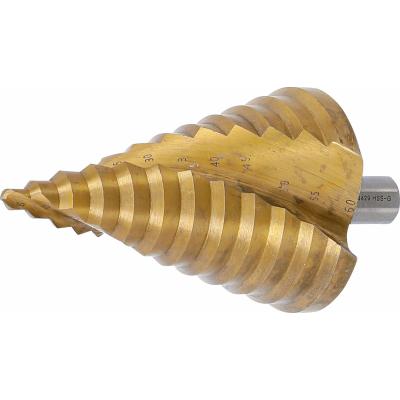

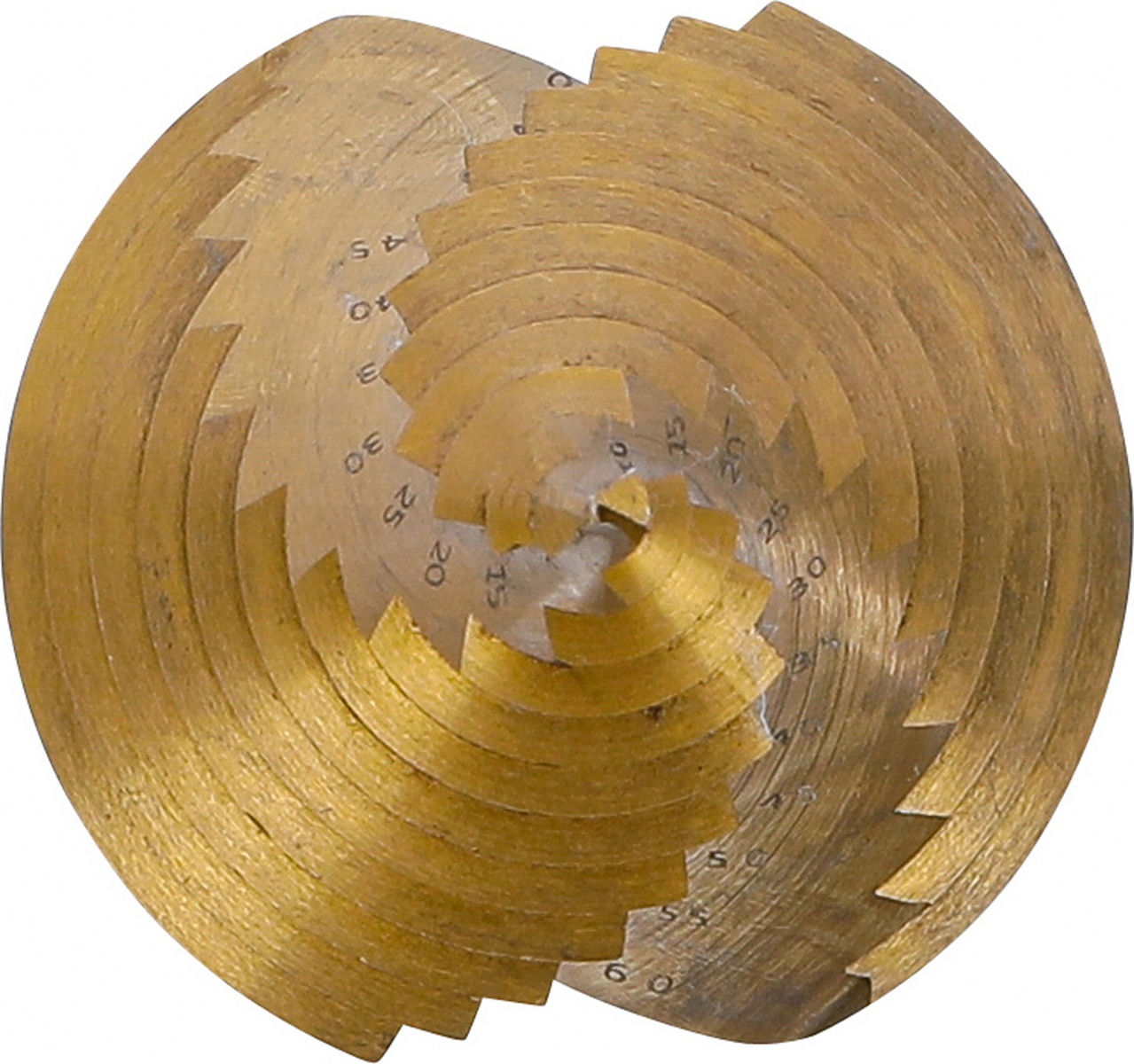

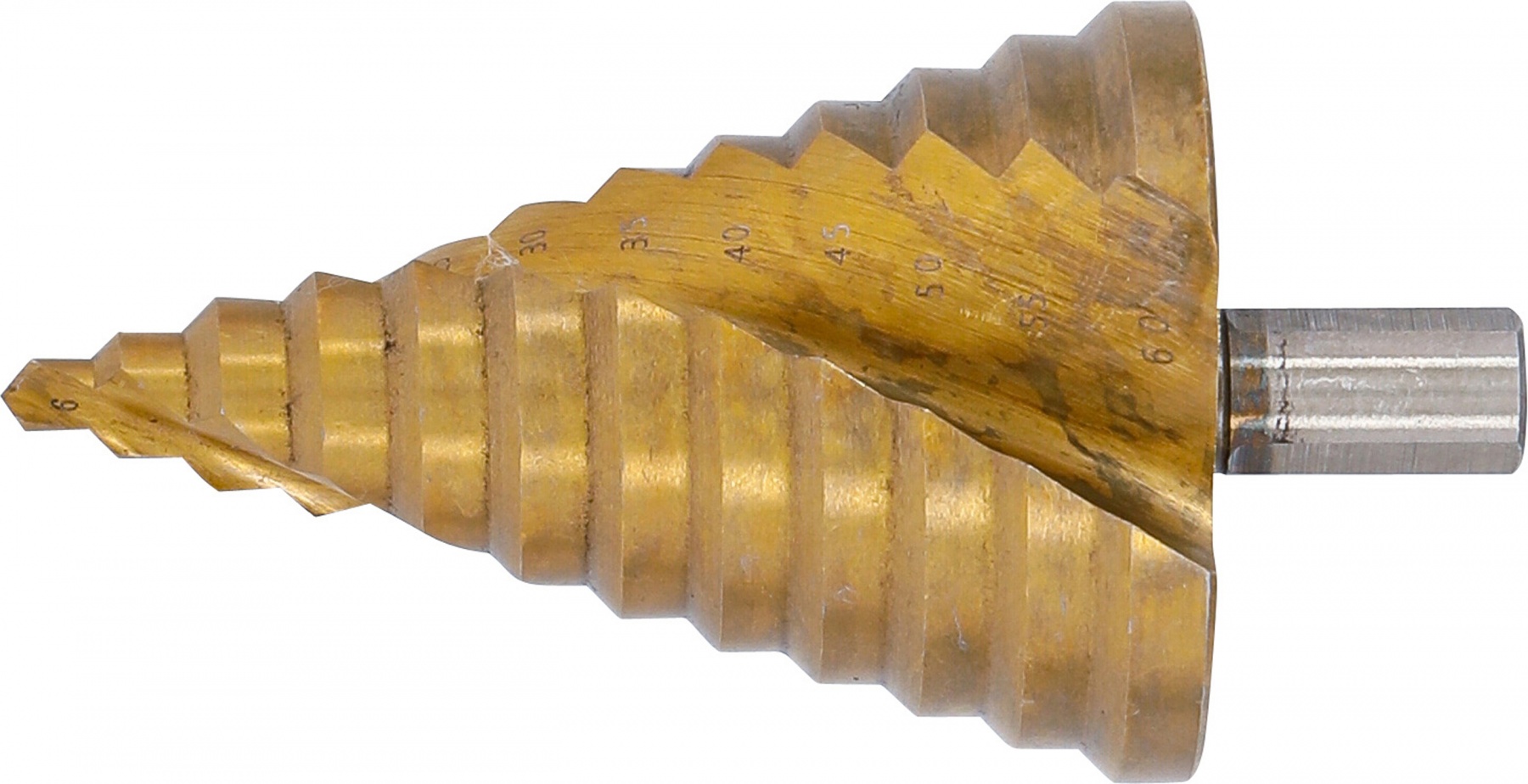

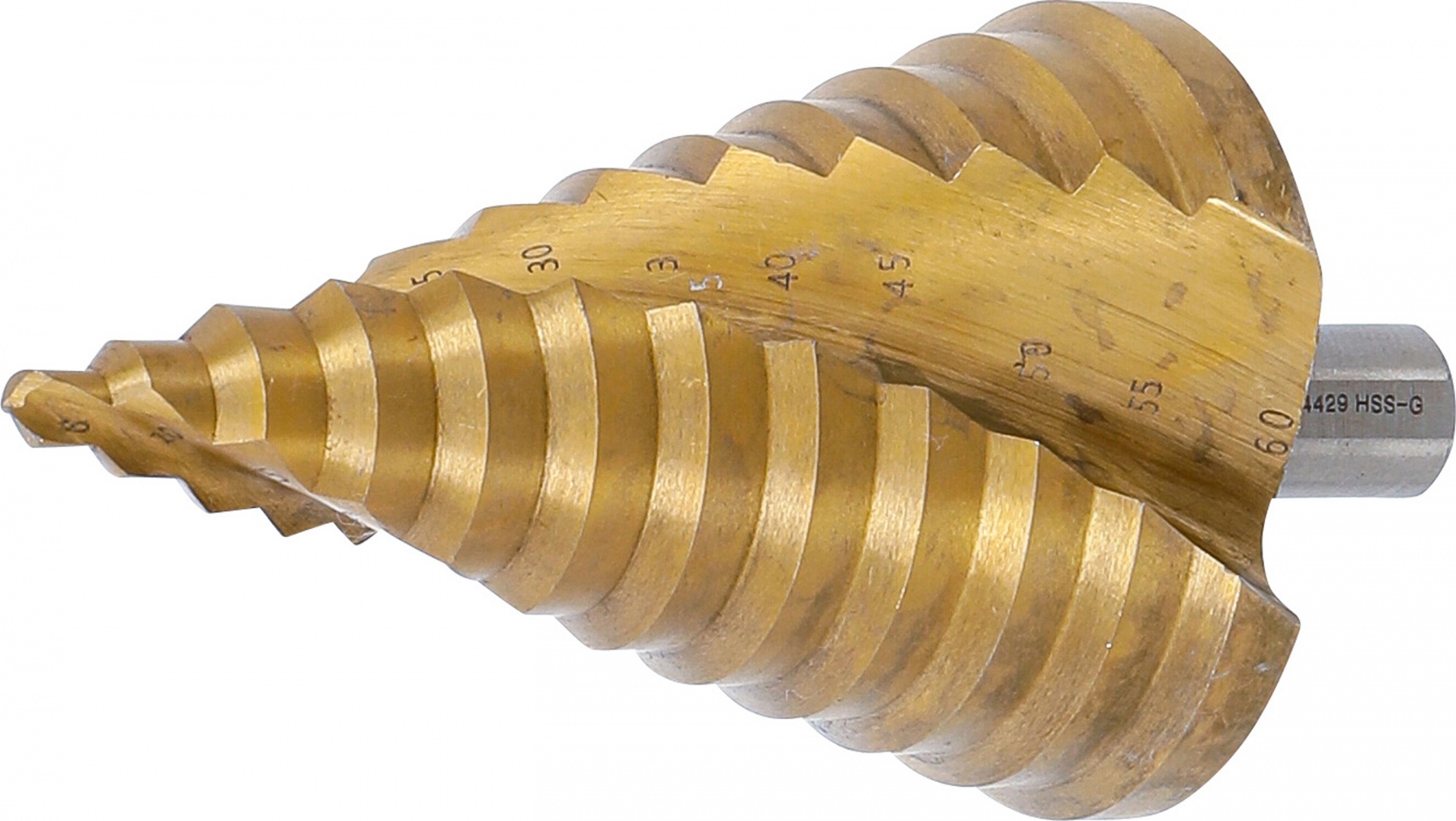

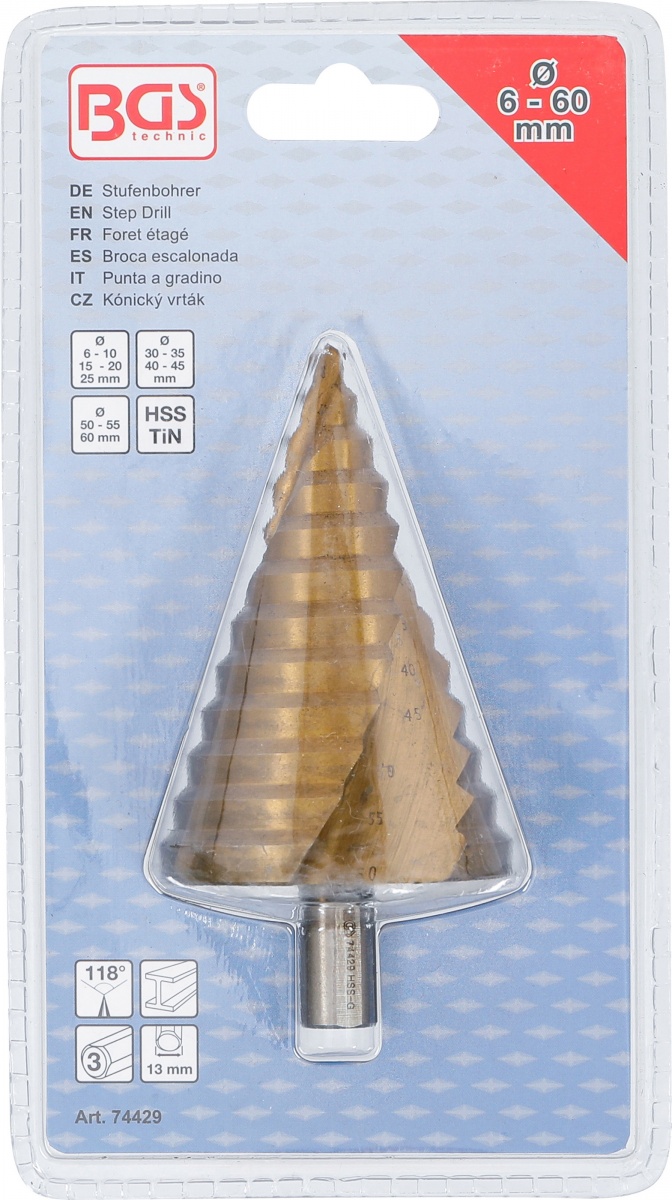

Grąžtas pakopinis | titano nitridas | Ø 6 - 60 mm (74429)

(0/10)

Prekės kodas: 74429

Aprašymas:

Grąžtas pakopinis | titano nitridas | Ø 6 - 60 mm (74429)

Gamintojas:
BGS-technic

Description
Technical data
suitable for thin material made of non-ferrous metal, plastic as well as sheet steel
circular, deburring-free drilling and reaming of sheet metal, pipes and profiles in materials up to 5 mm thickness
deburring up to 2.5 mm material thickness
sheets are centered, drilled, reamed and deburred in a single operation
absolutely smooth running
high cutting performance
tip with fully ground cross cut
right-hand cutting
with triangular shank (Ø 13 mm) for reliable power transmission
drilling steps: 6, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 mm
split point: 118°
