Lazerinis atstumo matuoklis | su kamera / vaizdo peržiūra | 120 m (YT-73128)

(10/10)

156,98 €

Prekės kodas: YT-73128

Kiekis:

Aprašymas:

Lazerinis atstumo matuoklis | su kamera / vaizdo peržiūra | 120 m (YT-73128)

Gamintojas:
YATO

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Measuring range
0.05-120 m
Measurement unit
meters, feet, inches, feet + inches
Measurement basis
3
Measurement memory
100
Surface measurement
yes
Volume measurement
yes
Angle measurement range
-90 ~ +90 ˚
Measurement accuracy
±2 mm
Calibration range
-9 ~ +9 mm
Laser
yes
Laser class
2
Laser power
˂1 mW
Laser wave length
630-670 nm
Laser pointer colour
red
Functions
calibration, video preview, staking
Continuous measurement mode
yes
Single measurement mode
yes
Angle measurement mode
yes
Min. and max. measured distance mode
yes
Adding and subtracting distances mode
yes
Constant angle pitch measurement mode
yes
Indirect measurement using hypotenuse
yes
Indirect measurement using two hypotenuses
yes
Indirect measurement using divided right-angled triangle mode
yes
Indirect measurement using double right-angled triangle mode
yes
Indirect measurement using right-angled triangle mode
yes
Measurement with an auxiliary camera
yes
Delayed measurement
3-60 s
Operating relative humidity Rh
85 %
Power supply
rechargeable
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery capacity
2000 mAh
Battery energy
7.4 Wh
Charger type
USB Type-C
Dimensions
125x54x27 mm
Electronic digital spirit level
yes
Display type
backlit LCD
Auto power off
5-30 (screen), 20-120 (laser), 100-300 (rangefinder) s
Computer connection
yes, via USB connection
Low battery indicator
yes
Tripod included
no
Tripod connection size
1/4" (6.35 mm) 20UNC
Working temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C
Weight
155 g
Symbol
YT-73128

Laser rangefinder with video preview is perfect for quick and accurate distance measurements in the range from 0.05 to 120 meters. Innovative optics and video preview allow for effective measurements outdoors, even in difficult sunny conditions. The measurement delay function and tripod mounting guarantee precise and repeatable measurements at any distance, eliminating errors caused by external factors.

Features:

measurement using a camera
point measurement
continuous measurement (current value, min. and max.)
measurement delay: from 3 to 60 seconds
calculating area and volume
measurements using the Pythagorean theorem
addition and subtraction of measurements
variable starting point of measurement
changing units of measurement
indirect measurement using right triangles
digital level
plumbing function
memory of 100 results
automatic screen shutdown: from 5 to 30 seconds
automatic laser shutdown: from 20 to 120 seconds
automatic rangefinder shutdown: from 100 to 300 seconds
calibration
connection to a computer via USB
Technical data:

measurement range: 0.05-120 m
measurement unit: meters, feet, inches

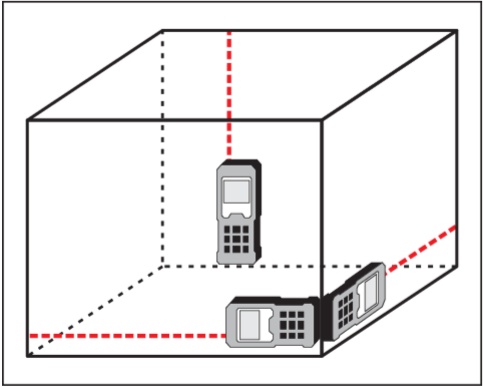

measurement reference points: 3
angle measurement range: -90 ~ +90˚
measurement accuracy: ±2 mm
calibration range: -9 ~ +9 mm
laser class: 2
laser power: ˂1 mW
laser wavelength: 630-670 nm
relative humidity Rh: 85%
working temperature: 0-40˚C
Additional information:

large, color TFT LCD display
reinforced housing
power supply: Li-Ion 3.7 V, 2000 mAh battery
battery status indicator
charging: USB Type C
dimensions: 125 x 54 x 27 mm
weight: 155 g

Usage warnings:

Caution: laser radiation. Do not stare into the laser beam.
Class 2 laser device.
