Nešiojamas taškinis suvirintojas su maitinimo bloko funkcija (YT-82507)

(10/10)

86,87 €

Prekės kodas: YT-82507

Kiekis:

Aprašymas:

Nešiojamas taškinis suvirintojas su maitinimo bloko funkcija (YT-82507)

Gamintojas:
YATO

YT-82507

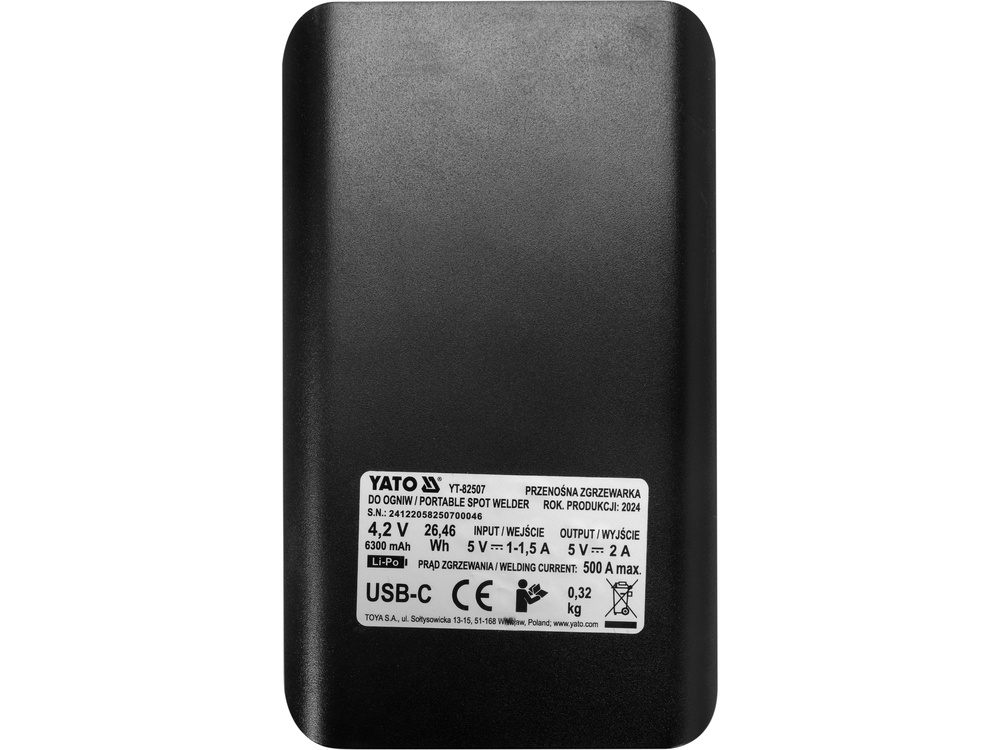

PORTABLE 500A SPOT WELDING MACHINE FOR CELLS WITH 6300MAH POWERBANK FUNCTION
Brand
Yato
Symbol
YT-82507
Max. welding current
500 A
Input current
1-1.5 A
Output current
2 A
Input voltage
5 V d.c.
Output voltage
5 V d.c.
Operating temperature range
0~35 ˚C
Battery type
Li-Po
Battery voltage
4.2 V d.c.
Battery capacity
6300 mAh
Battery energy
26.46 Wh
Dimensions
148x86x30 mm
Display type
LCD
Storage temperature
0~50 ˚C
Weight
0.32 kg

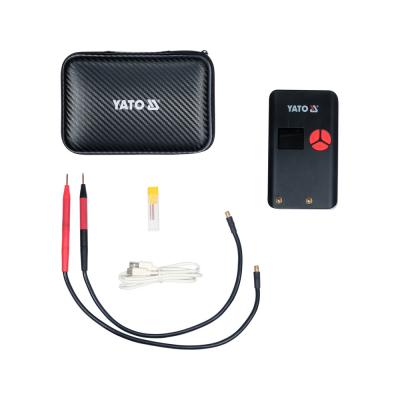

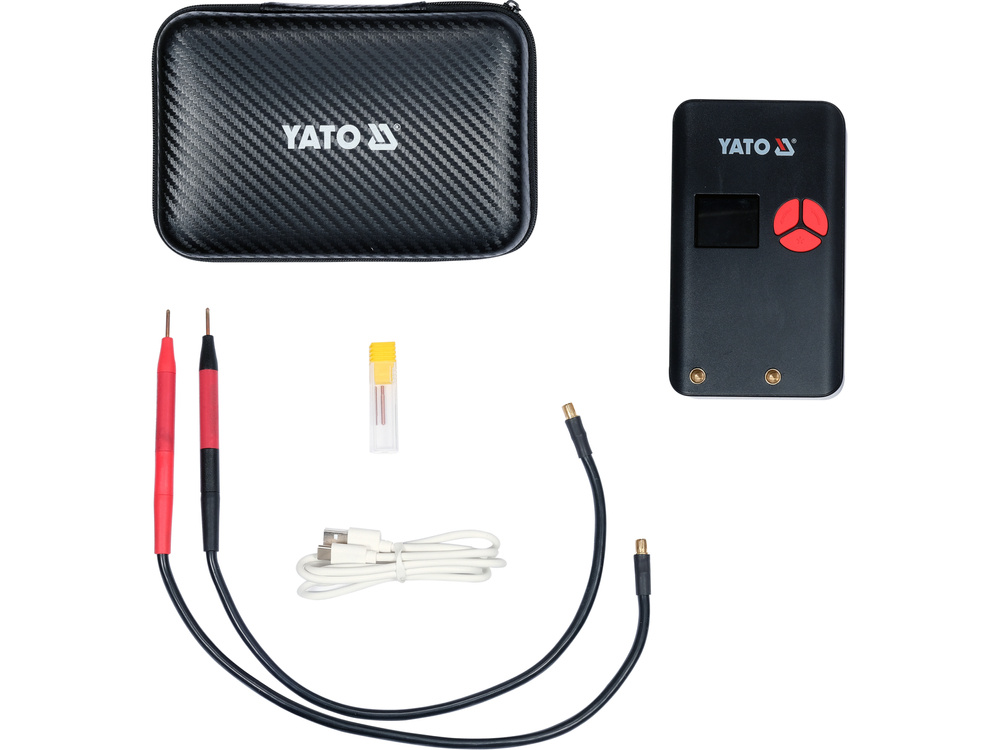

Kit contents
welding cable x2, welding pin x4, charging cable
Application
for spot welding of nickel tapes and lithium cells

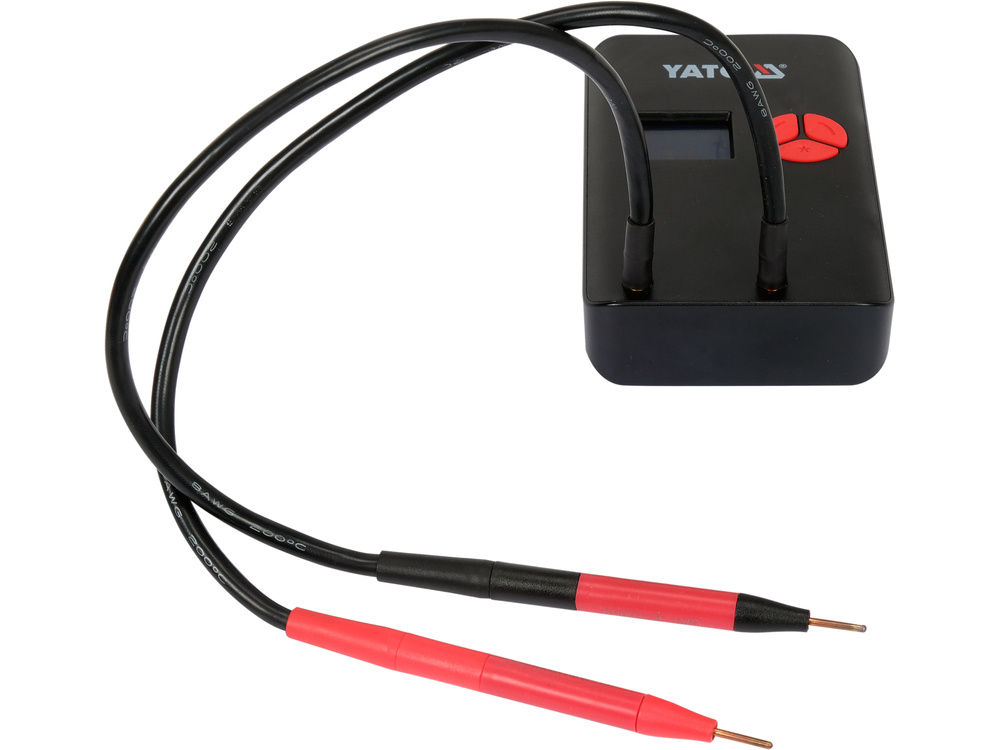

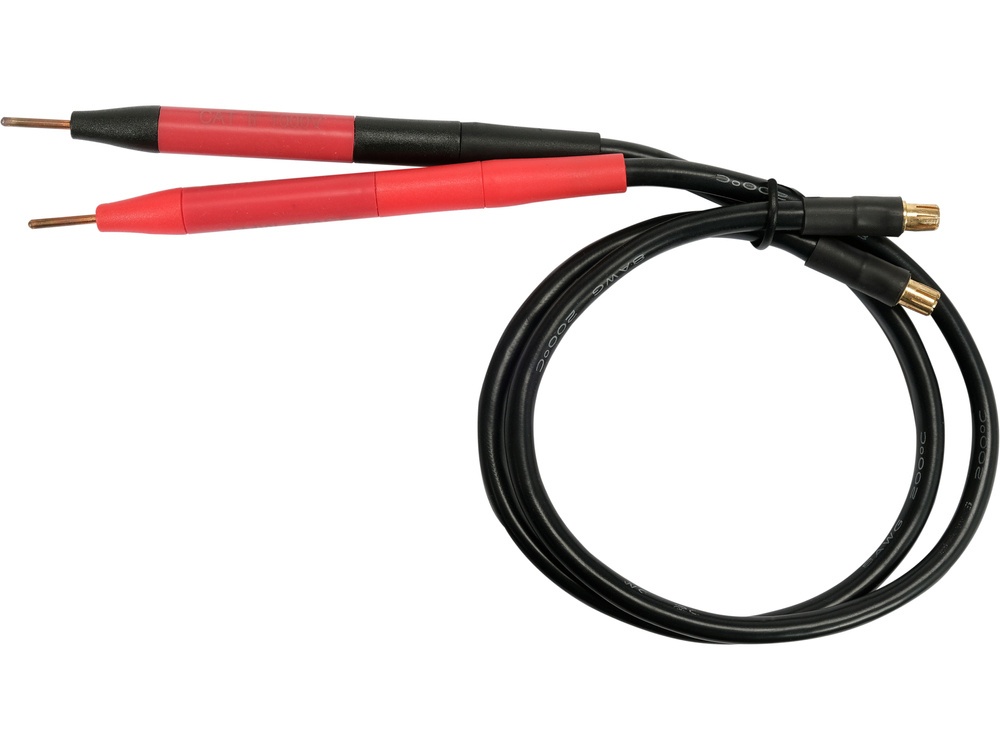

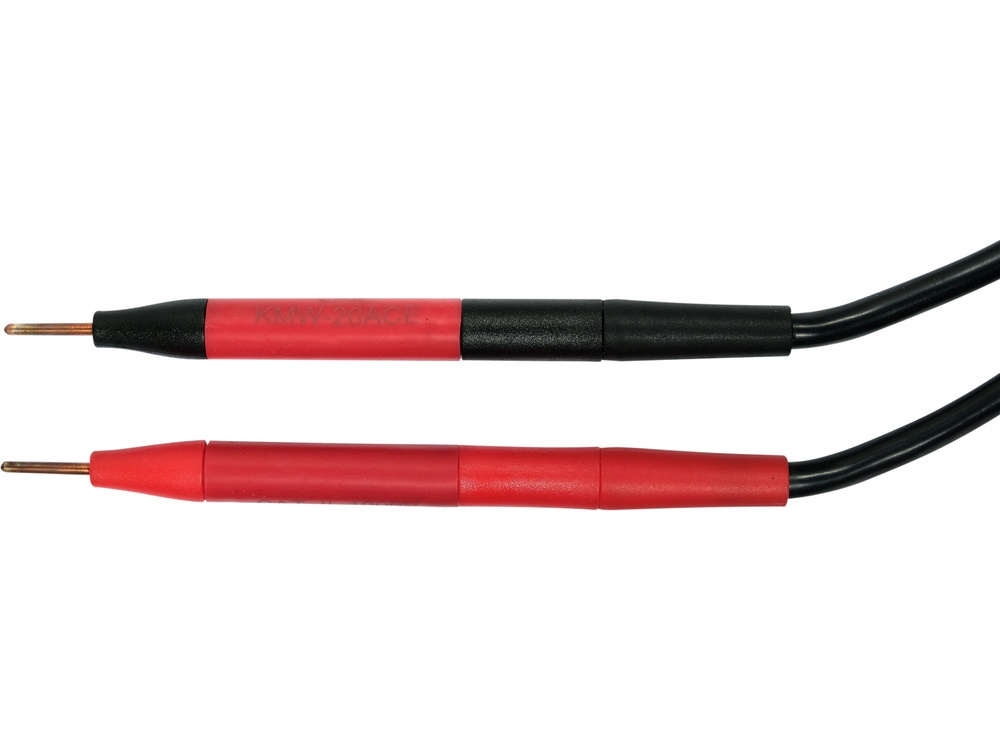

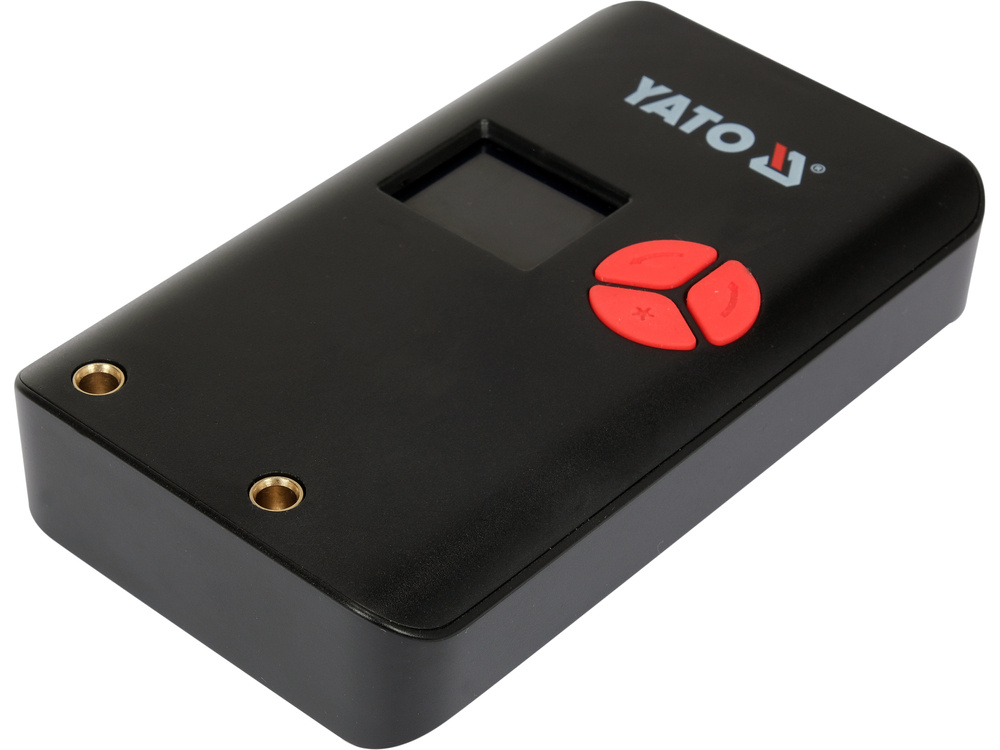

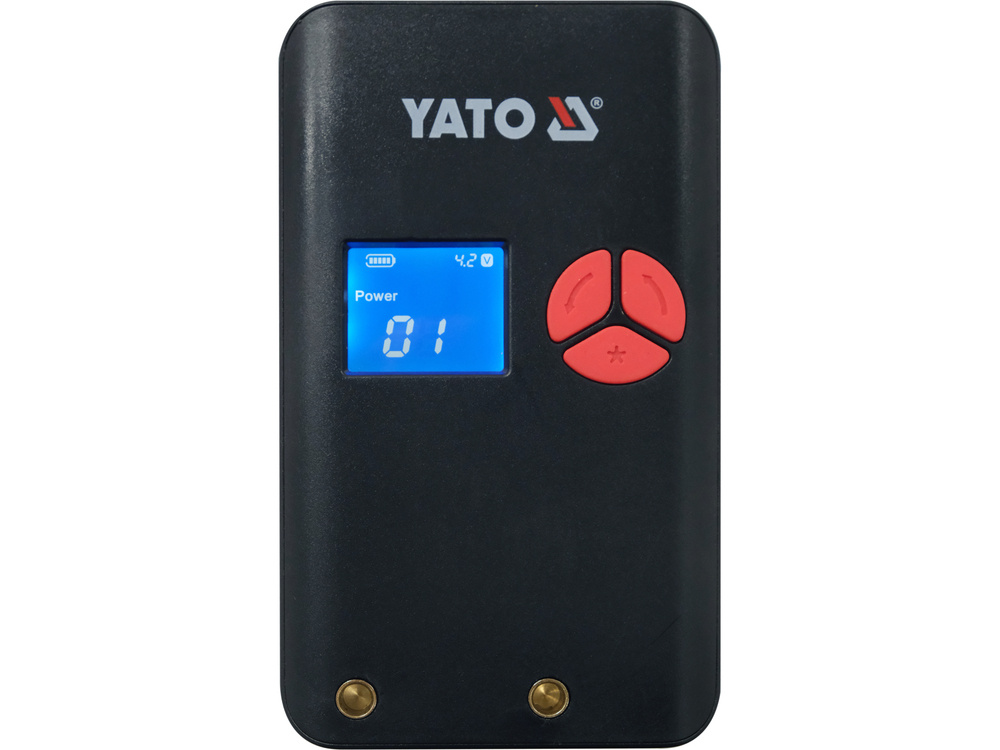

Portable spot welder with power bank function for permanent connection of 18650 cells and similar ones using nickel and nickel tapes. LCD display with simple, intuitive menu. Ten power levels. Two parallel connected lithium polymer cells with a maximum instantaneous discharge current of up to 90 C. 40-centimeter copper wires in silicone insulation with a cross-section of about 10 mm2 with replaceable copper tips.

The device provides a maximum welding current of ~500 A. This is the average real value of the current intensity measured over a period of 100 ms. Some manufacturers provide the current parameters of the MOSFETs or the peak current value instead of the real welding current. From the point of view of technical data, this is true, but in practice, obtaining a correct weld using a 0.15 mm thick nickel tape is often impossible. The YATO portable spot welder allows you to perform correct welds using 8 mm wide and 0.20 mm thick nickel tapes and 8 mm wide and 0.15 mm thick nickel tapes.

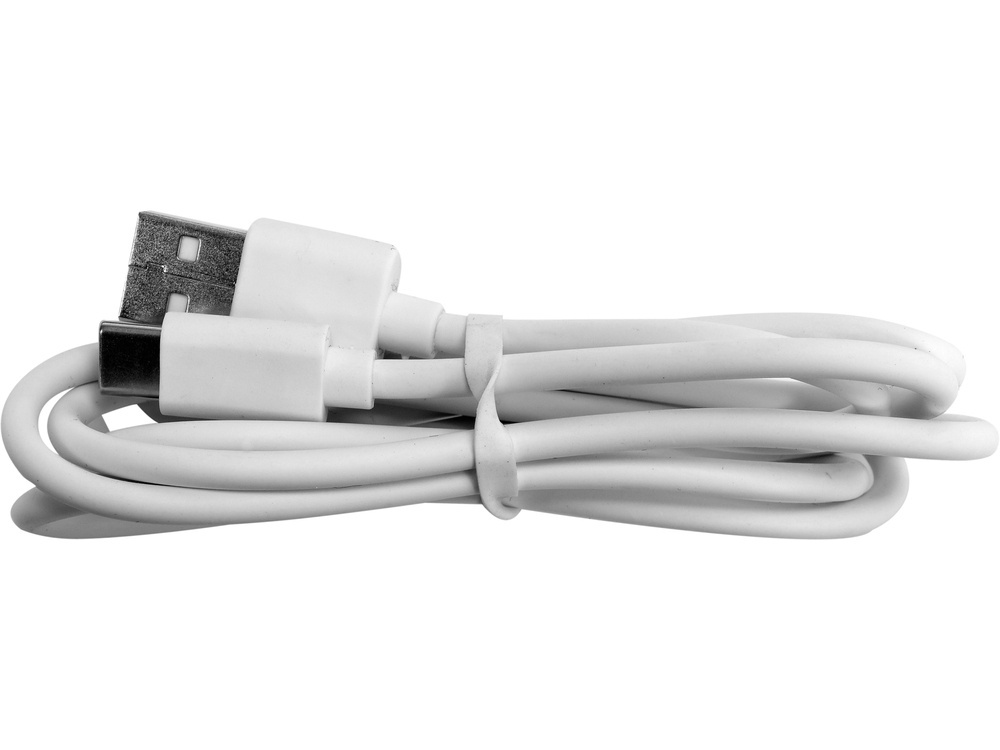

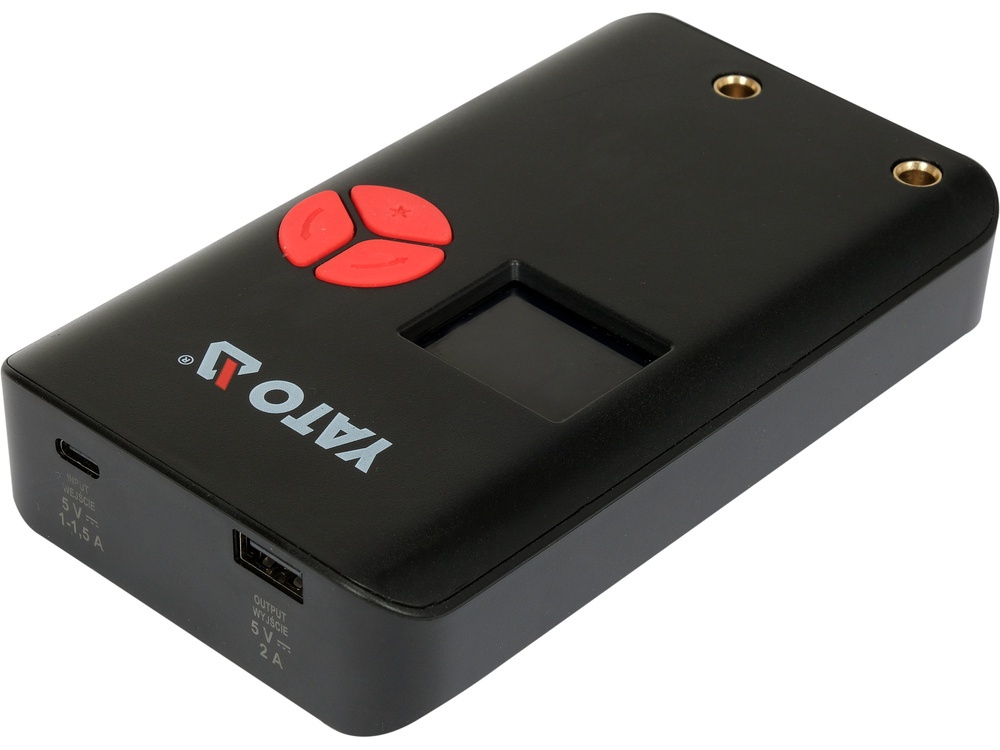

The welder can be charged with any phone charger using a cable with a USB-C tip. The USB-A socket will power devices with a demand of 5 V and a maximum current of 2 A.

max. welding current: 500 A
input current: 1-1.5 A
output current: 2 A
input voltage: 5 V
output voltage: 5 V
operating temperature range: 0~35˚C
battery type: Li-Po
battery voltage: 4.2 V
battery capacity: 6300 mAh
dimensions: 148 x 86 x 30 mm
display type: LCD
weight: 0.32 kg
set contents:

welding cable 2 pcs.
welding pin 4 pcs.
charging cable

Papildoma dokumentacija:

_dok_29813_1.pdf
