Purkštukų ištraukimo rinkinys | pneumatinis | 21 vnt. (91120)

(10/10)

151,56 €

Prekės kodas: 91120

Kiekis:

Aprašymas:

Purkštukų ištraukimo rinkinys | pneumatinis | 21 vnt. (91120)

Gamintojas:
KRAFTMANN

Description
Technical data
More downloads
for compressed air-assisted removal of particularly tight diesel injectors
the diesel injectors are removed from the cylinder head by pneumatically generated impact effect
coking and rust deposits are broken up and the injector will released from sealing seat
the extractor is screwed in directly to the fixed injector by using the corresponding adapter
compact design
high impact effect
including a wide range of adapters, suitable for the most commonly used diesel injectors
lifting speed: 2500 per minute
vibration lever (x-axis): 19.28 m/s
vibration lever (y-axis): 10.47 m/s
vibration lever (z-axis): 64.57 m/s
vibration lever (sythesis): 68.19 m/s

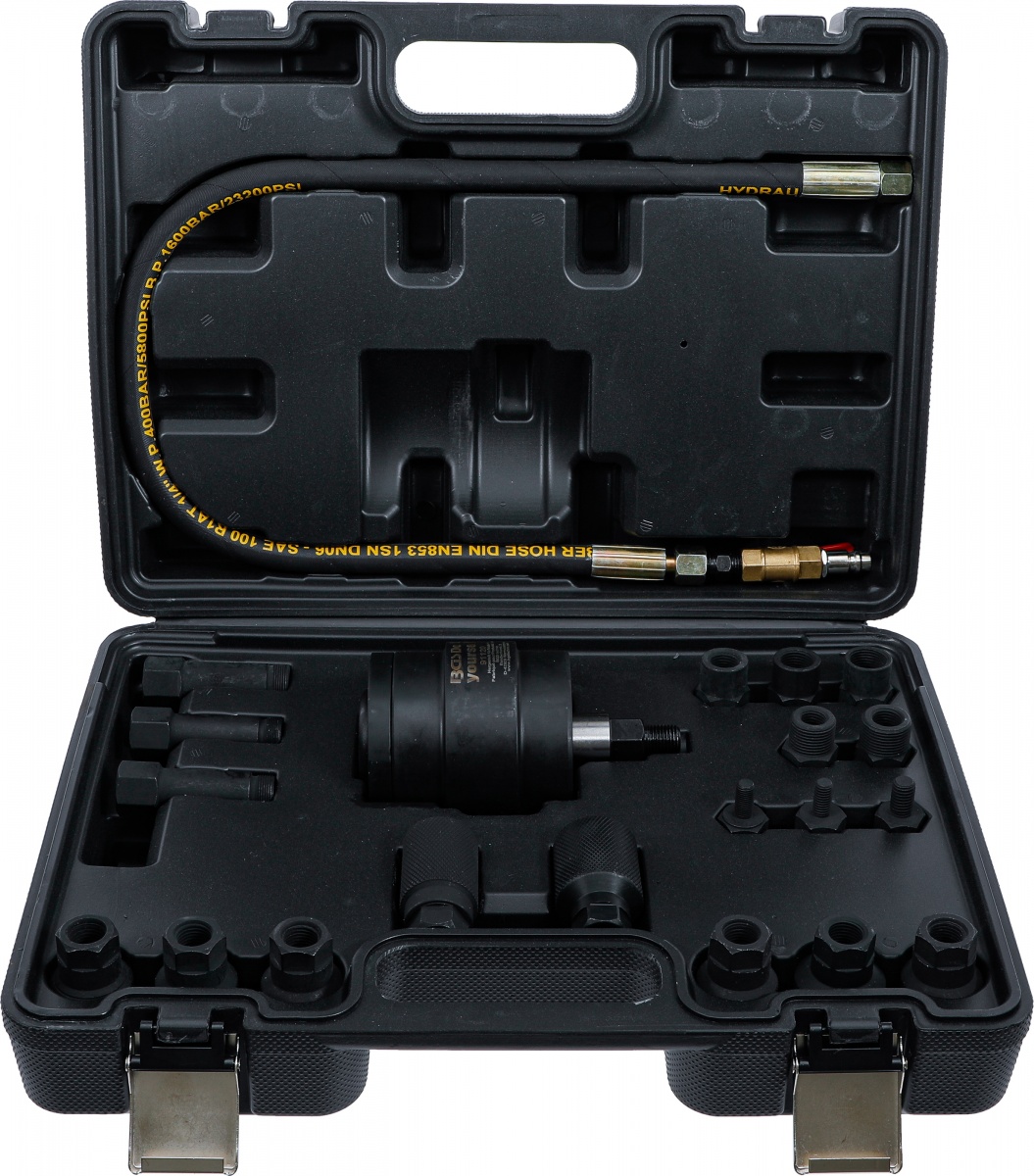

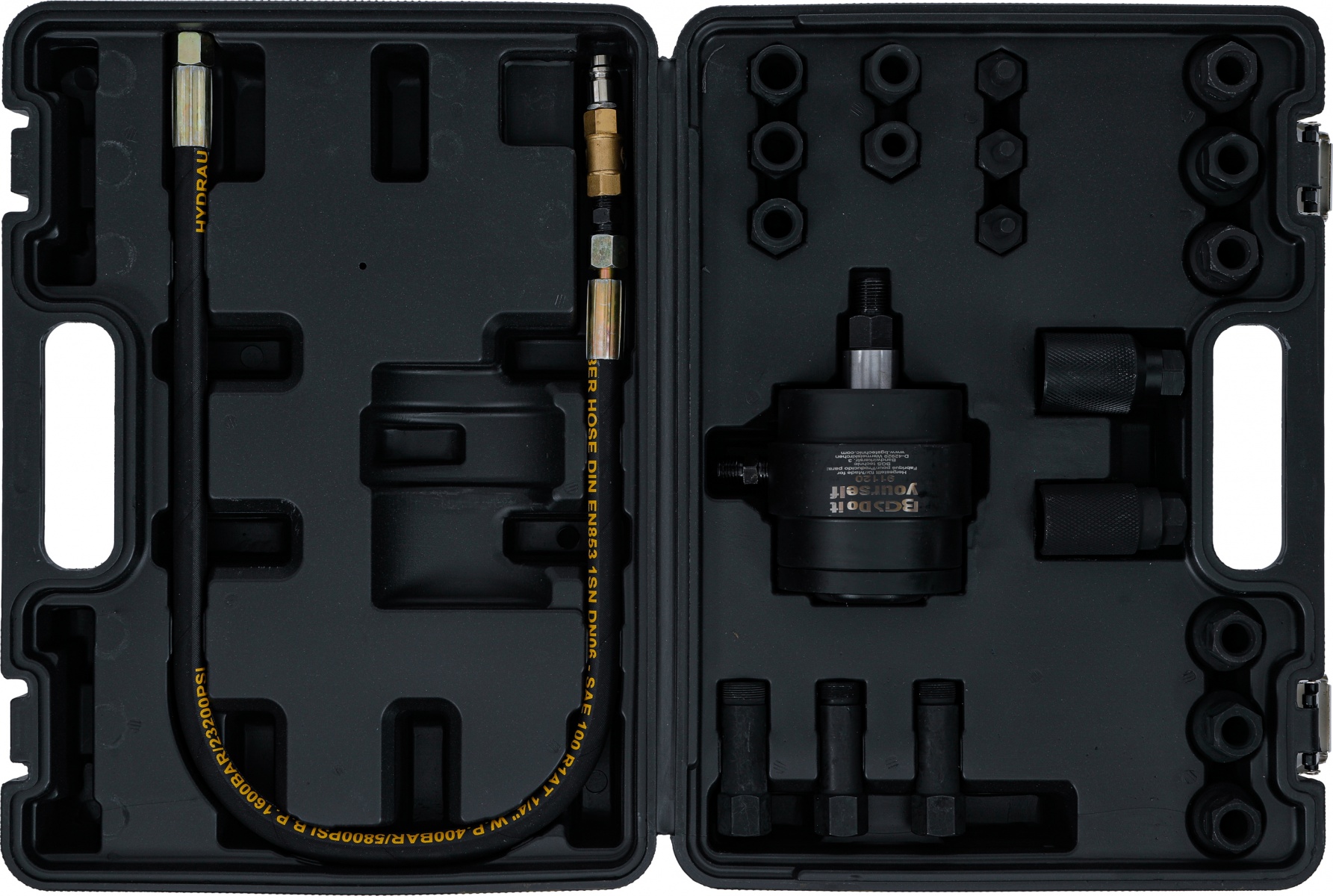

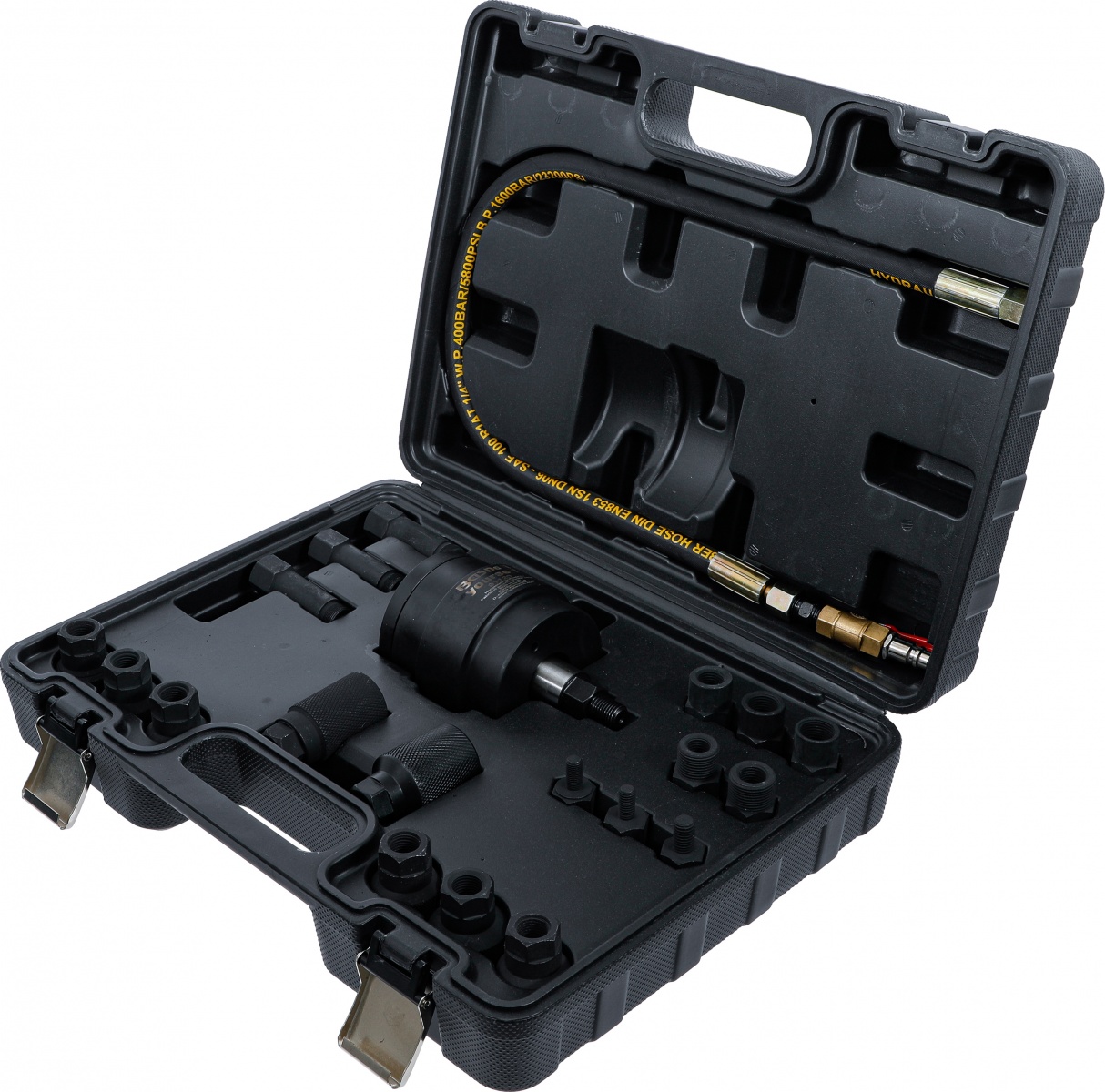

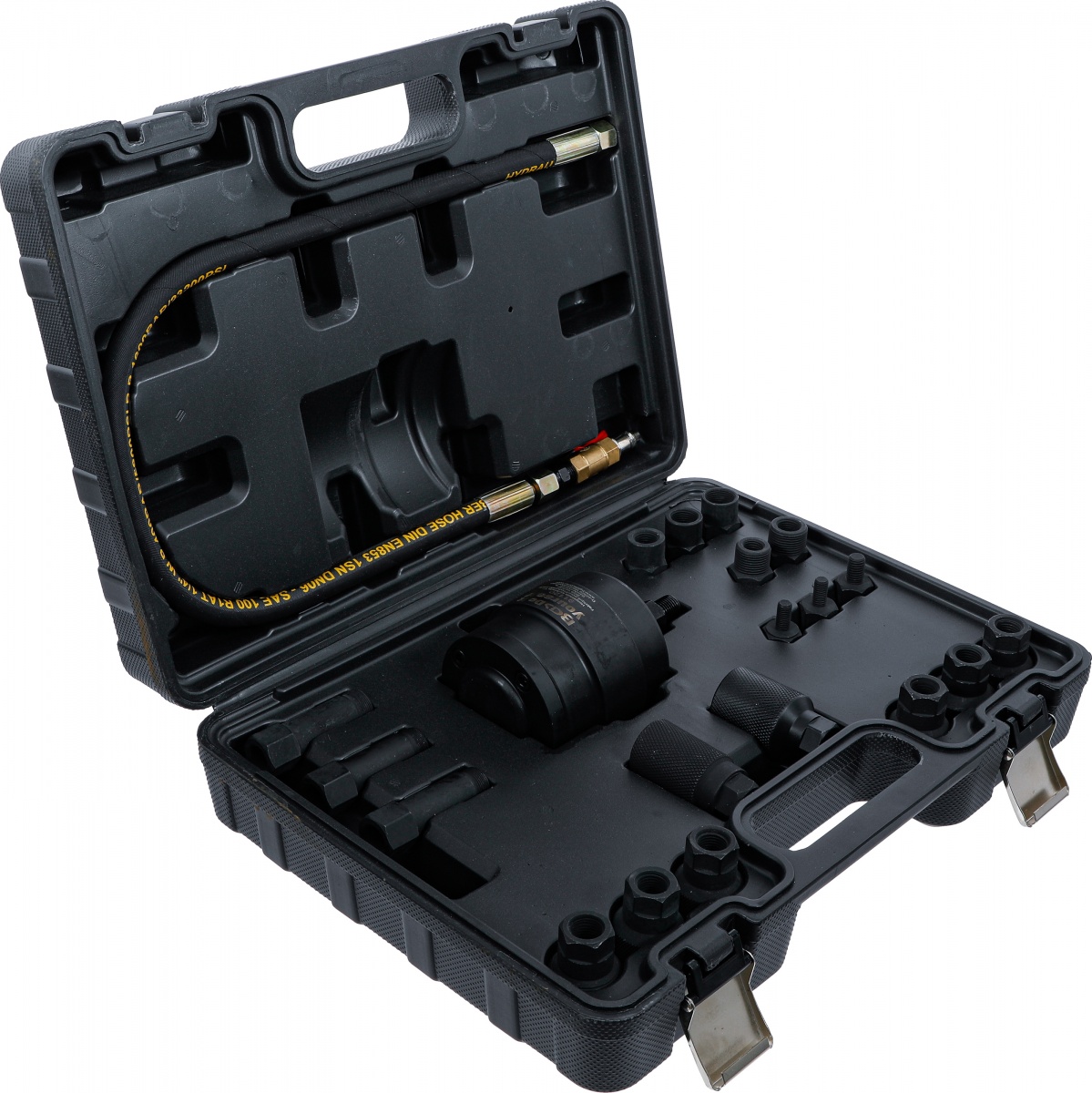

scope of delivery:

1 pneumatic injector extractor
1 compressed air adapter with cmpressed air valve
1 external thread adapter M20 x 1
1 external thread adapter M18 x 0.75
1 external thread adapter M17 x 1
1 internal thread adapter M14 x 1.5
1 internal thread adapter M16 x 1.5
1 internal thread adapter M18 x 1.5
1 external thread adapter M20 x 1.5 / M12 x 1.5
1 external thread adapter M22 x 1.5 / M14 x 1.5
1 external thread adapter M8 x 1
1 external thread adapter M8 x 1
1 external thread adapter M10 x 1.5
1 internal thread adapter M26 x 0.75
1 internal thread adapter M31 x 0.75
1 internal thread adapter M25 x 0.5
1 internal thread adapter M25 x 1
1 internal thread adapter M27 x 0.75
1 internal thread adapter M27 x 1
1 internal thread adapter M29 x 1
1 internal thread adapter M27 x 1
