Skaitmeninis dažų ir lako storio matuoklis (YT-72900)

(0/10)

48,12 €

Prekės kodas: YT-72900

Kiekis:

Aprašymas:

Skaitmeninis dažų ir lako storio matuoklis (YT-72900)

Gamintojas:
YATO

YT-72900

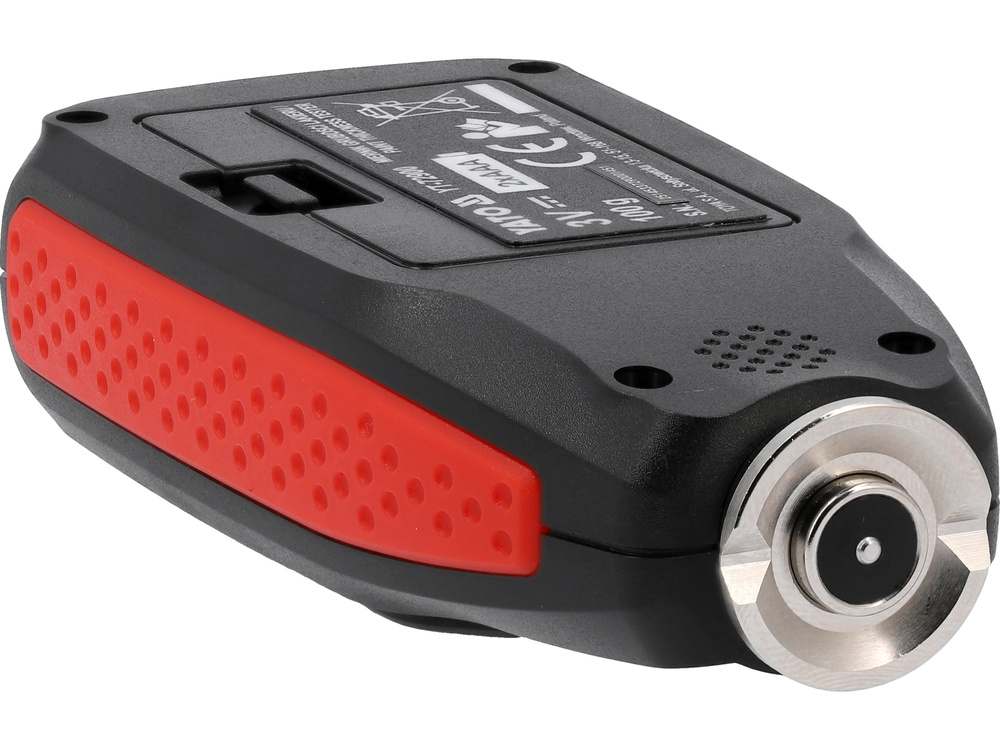

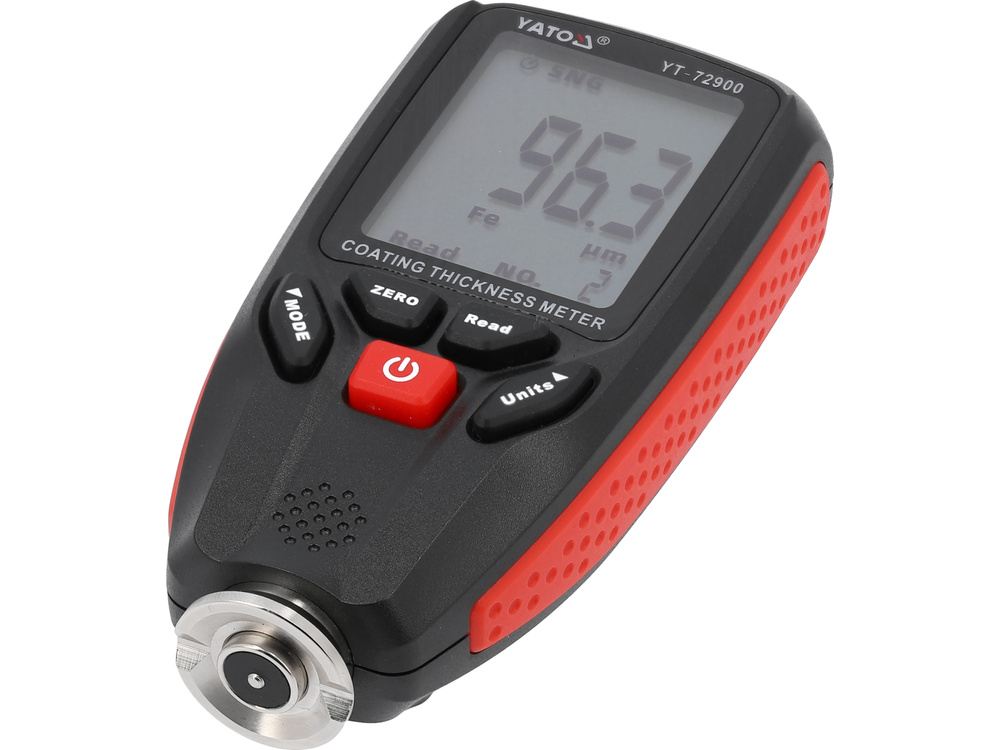

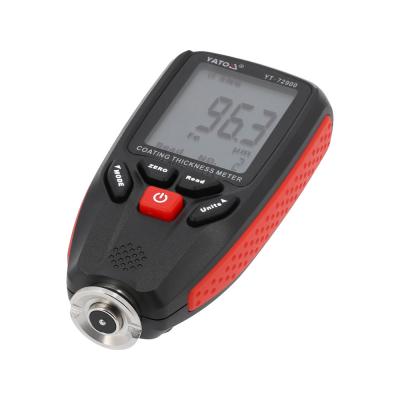

DIGITAL PAINT THICKNESS TESTER
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Measuring range
0-1300 µm
Grain
0.1 µm
Measuring accuracy
3% ± 2 µm
Min. thickness of measured surface Fe / NFe
0.5 / 0.3 mm
Min. radius of convex curvature of measured surface
1.5 mm
Min. radius of concave curvature of measured surface
25 mm
Min. diameter of measured surface
6 mm
Measurement memory
20
Dimensions
105x52x25 mm
Power supply
battery
Battery type
2x1.5V; AAA
Relative humidity of work Rh
<80 %
Working temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C
Weight
100 g
Application
checking the thickness of the paint layer on aluminum and steel coatings
Symbol
YT-72900

Digital paint and varnish thickness gauge used for magnetic and non-magnetic materials. It performs precise measurements on various surfaces, detected automatically, allowing for the assessment of the quality of the coating. Used in the automotive industry, as well as in the metal and chemical industry.

The paint coating thickness measurement range from 0 to 1.3 mm and the inclusion of the radius of curvature guarantee reliable readings of the tester even on curved or angular surfaces.

for ferrous and non-ferrous coatings - steel, copper, aluminum
autonomous detection of the tested substrate material
measuring range: 0-1.3 mm (0-1300 μm)
measuring accuracy: +/-3% + 2 μm
result resolution: 0.1 μm
min. radius of convex curvature: 1.5 mm
min. radius of concave curvature: 25 mm
min. diameter of the measuring area: 6 mm
min. tested thickness: iron 0.5 mm, other 0.3 mm
memory of last 20 results
high resolution screen
self-test function
operating temperature: 0-40℃
operating humidity: 20-90%, relative Rh: <80%
power supply: 2 AAA batteries, 1.5 V
dimensions: 105 x 52 x 25 mm
weight: 100 g
