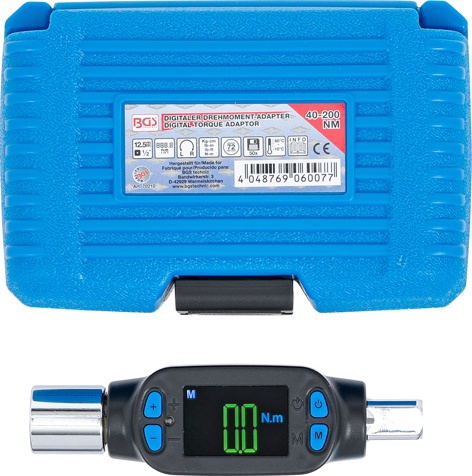

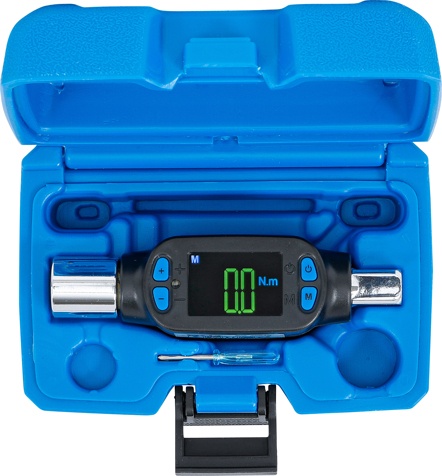

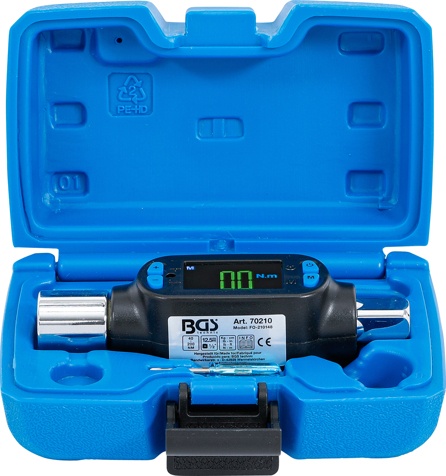

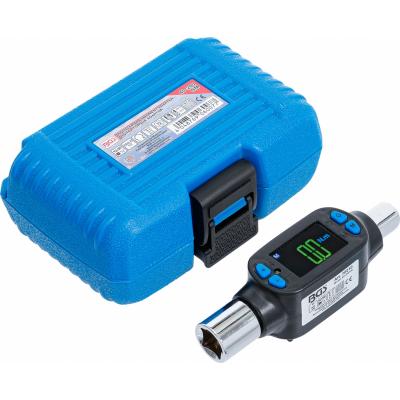

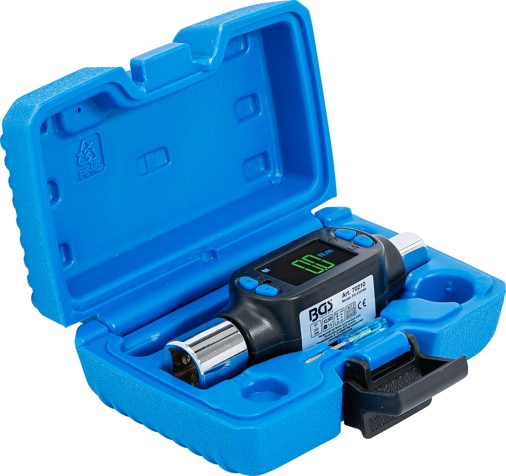

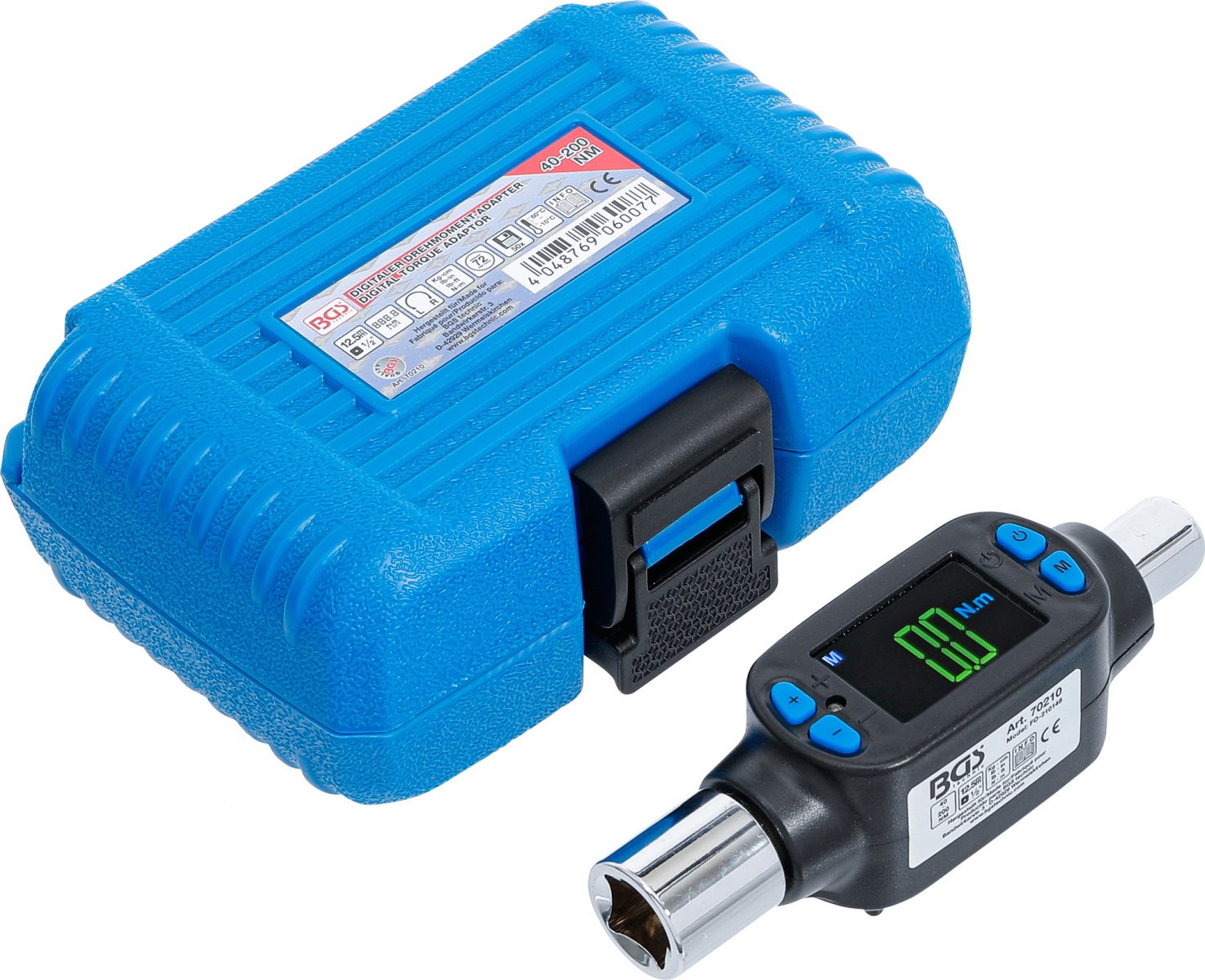

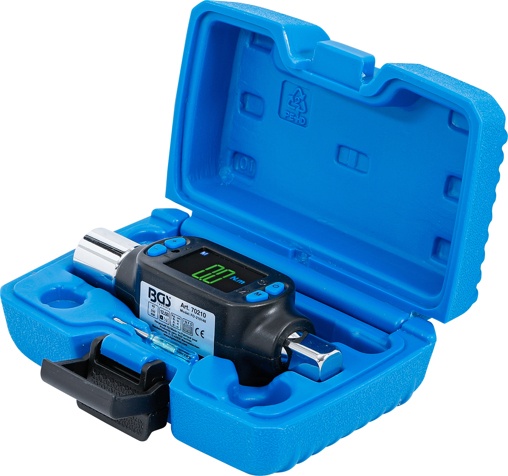

Skaitmeninis sukimo momento adapteris | 12.5 mm (1/2") | 40 - 200 Nm (70210B)

(10/10)

76,24 €

Prekės kodas: 70210B

Kiekis:

Aprašymas:

Gamintojas:
BGS-technic

Description
suitable for tightening screw connections according to the specified torque

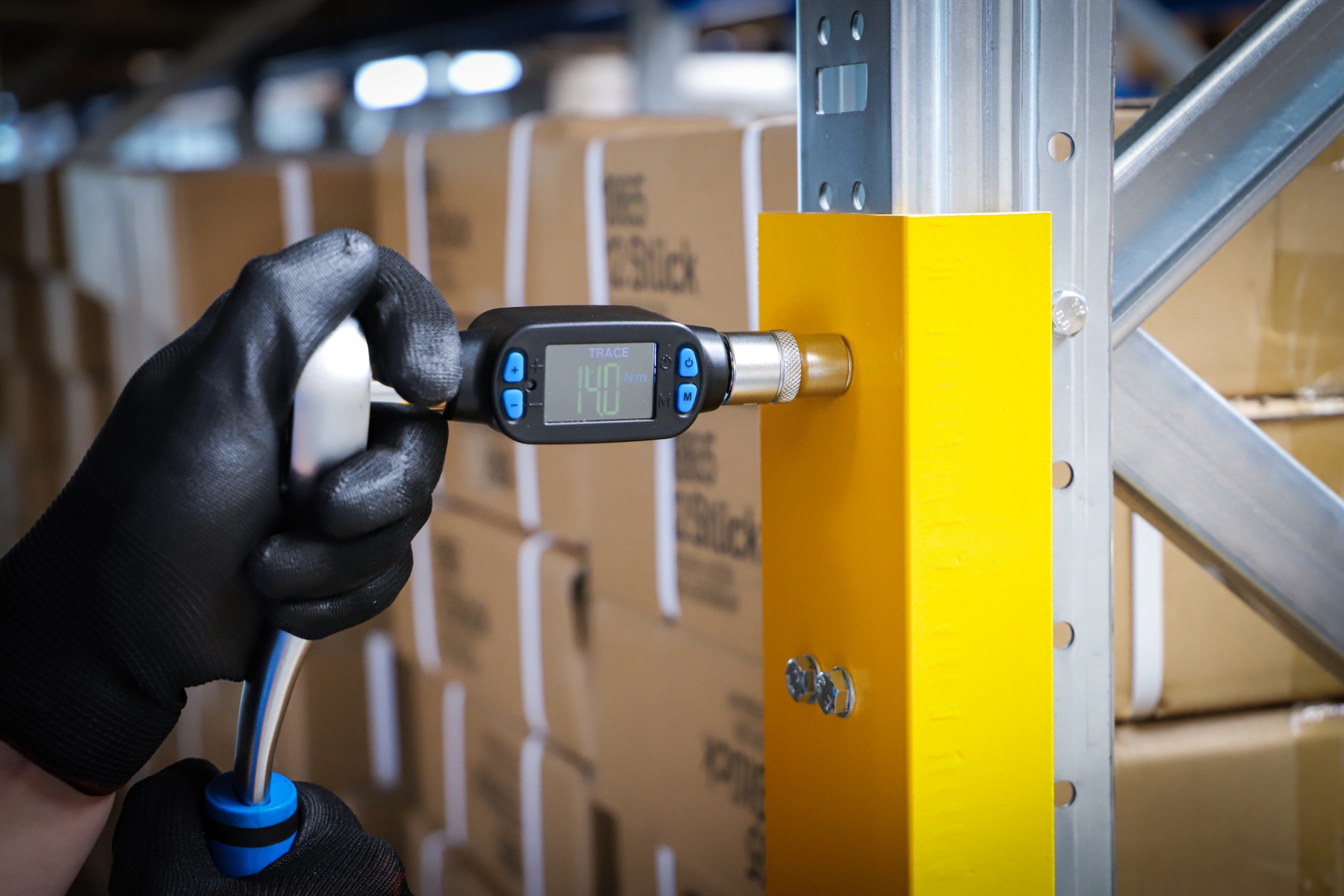

can be used as a torque attachment with any drive element such as a conventional reversible ratchet
for controlled clockwise and counterclockwise tightening
very high measuring accuracy, documented with a test certificate
large illuminated LCD display
display mode: Track (concurrent display) and Peak (peak value detection)
with automatic switch-off function
reaching the desired torque is indicated by an acoustic signal (buzzer)
resolution: 0.1 Nm
dimensions: 125 x 35 x 40 mm
memory capacity: 50 data sets
operation modes: Peak & Trace
unit selection: Kg-cm, Ib-in, Ib-ft, N-m
storage temperature: -20 °C - 70 °C (-4 °F - 157.9 °F)
humidity: 15% - 90%
Technical data
Drive profile size, metric 12,5 mm
Drive profile size, inch 1/2 "
Drive profile Internal square
Drive profile size, metric 12,5 mm
Output profile External square
Drive profile size, inch 1/2 "
Width 100 mm
Height 62 mm
Packaging suitable for wall hanging No
Gross weight 388 g
Max. torque 40 Nm
Weight 0,35 kg
Depth 152 mm
Battery 2 x 1,5 V AAA
Operating temperature -10 - 60 °C
Release accuracy +/- 2 %
Min. torque 200 Nm
