102,69 €
Prekės kodas: GT1701
Aprašymas:

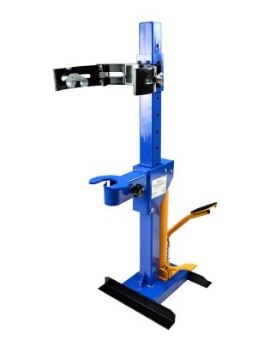

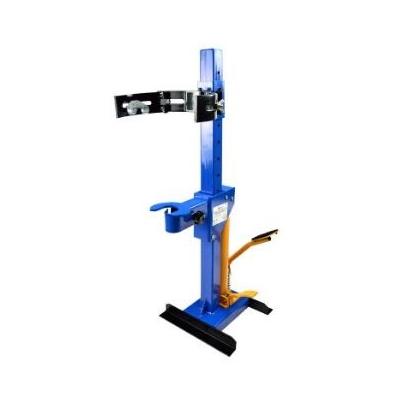

Spyruoklių suspaudėjai hidrauliniai | 210 - 570 mm | 1000 kg (GT1701)
2200Lbs, 1000kg
210-570mm
eiga 325mm
Spyruoklės Ø101.6 - 254mm
Technical data
Emphasis
1 ton
The scope of work of the jaws
100 - 250 mm
Working range
210 - 570 mm
The maximum diameter of the compressed spring
400 mm
Overall height
1050 mm

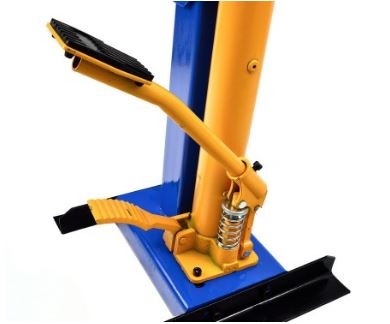

Actuator
foot pedal
Pull out the piston
330 mm
Number of working levels
7
The dimensions of the base
350 mm x 340 mm
27 kg
